Features Mounting Type: T/H Operation Direction: R/A & S/T Durability: 10000 cycles
Series
Family
Interface
PCB Mounting
Operation Direction
Product Height (mm)
Product Length (mm)
Center Height (mm)
PCB to Top Height (mm)

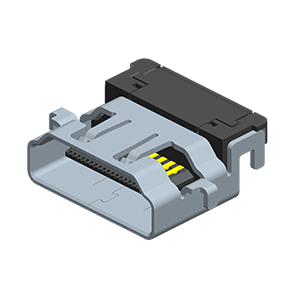

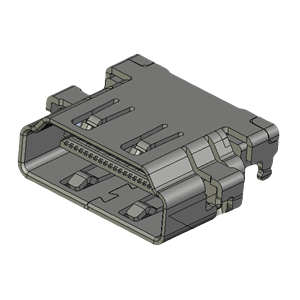

30232-xxxxx-xxx
A type
Reverse Sink
T/H
R/A
6.20
13.85
-0.75
2.35

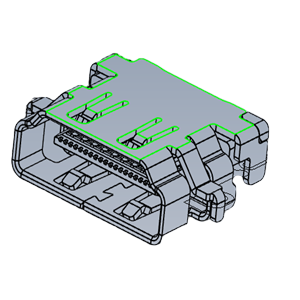

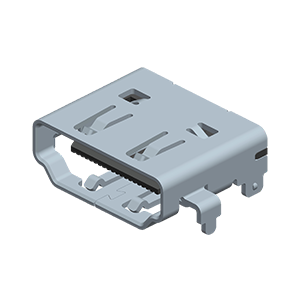

30233-xxxxx-xxx
Standard Sink
5.50
12.00
1.43
4.20

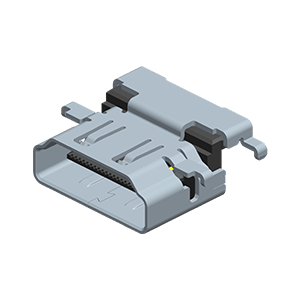

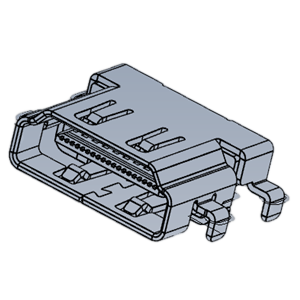

30244-xxxxx-xxx
6.80
-1.83
2.195

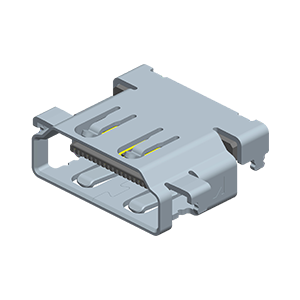

59561-xxxxx-xxx
5.55
12.70
-0.30
2.48
