MXM

特性
电路:230 接脚/314 接脚
安装类型:SMT
操作方向:R/A
产品高度:4.0/4.8/5.2/6.5/7.5/9.5mm(最大值)

进阶搜寻

Series


Family

Type

Pitch(mm)

PCB Mounting

Operation Direction

Product Height (mm)

Center Height (mm)

PCB To Top Height (mm)

Contact Position

Key Option

Circuits

HighSpeed Support

52741-314xx-xxx

52741-314xx-xxx

MXM

Standard

0.50

SMT

R/A

5.20

2.70

5.00

-

-

314

PCIe Gen 4(16GT/s)

52742-314xx-xxx

52742-314xx-xxx

MXM

Standard

0.50

SMT

R/A

7.50

5.00

5.00

-

-

314

PCIe Gen 4(16GT/s)

88882-2Dxx-xxx

88882-2Dxx-xxx

MXM

Standard

0.50

SMT

R/A

7.50

5.00

5.00

-

-

230

-

88883-2Dxx

88883-2Dxx

MXM

Standard

0.50

SMT

R/A

9.50

7.00

7.00

-

-

230

-

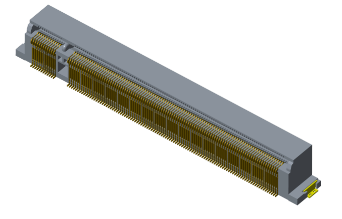

88885-2Dxx

88885-2Dxx

MXM

Standard

0.50

SMT

R/A

5.20

2.70

2.70

-

-

230

-

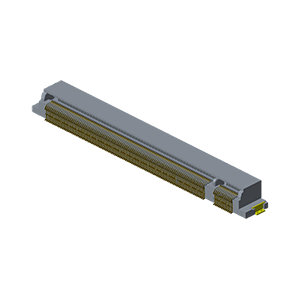

88975-2Dxx

88975-2Dxx

MXM

Reverse

0.50

SMT

R/A

6.50

4.00

4.00

-

-

230

-

88976-2Dxx

88976-2Dxx

MXM

Standard

0.50

SMT

R/A

6.50

4.00

4.00

-

-

230

-

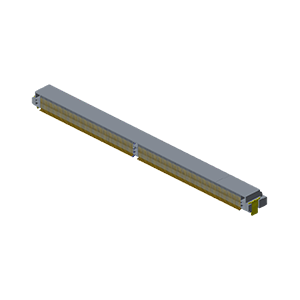

91781-314xx-xxx

91781-314xx-xxx

MXM

Standard

0.50

SMT

R/A

5.20

2.70

2.70

-

-

314

-

91782-314xx-xxx

91782-314xx-xxx

MXM

Standard

0.50

SMT

R/A

7.50

5.00

5.00

-

-

314

-

91783-314xx-xx-xx

91783-314xx-xx-xx

MXM

Standard

0.50

SMT

R/A

4.80

2.30

2.30

-

-

314

-
