M.2
Features
Circuits: 67 pins
Mounting Type: SMT
Operation Direction: R/A
Standard type, Key A/B/E/M,
Product Height: 2.2/3.2/4.2/5.5/5.8/6.7/8.5mm
Gen Z
Features
Gen Z ,SFF-TA-1002
High Speed from 56GT/s PAM4
Type: Vertical
(with shell /without shell)
straddle mount host board thickness
(1.57mm/1.93mm/2.36mm)
MCIO
Features
0.6mm pitch vertical and Right angle
High speed -56Gb/S PAM4, PCIe Gen4, PCIe Gen5,
Support both cable and card edge connection
DDR5
Features
Meet high speed DDR5 requirement of JEDEC standards
262pin in 4.0mm & 5.2mm height with standard and reverse type
Excellent mechanical structure with high density design of 0.5mm pitch
Dongle
Hdmi to vga、1TO3、mini dp to HDMI、type c to Lan、type HUB...

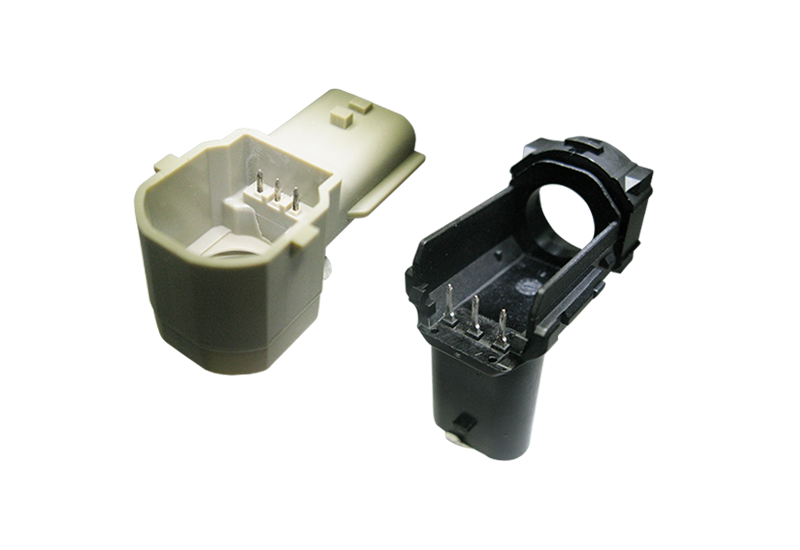

汽车
ADAS system
High Voltage connector
EV Product
板对板连接器
间距:0.4-1.25mm
电路数:10-100 接脚
配对高度:0.8-17.9mm
线对板连接器
间距:0.40~3.96mm
安装:SMT、T/H
排:单、双
USB Type C 连接器
电路数: 12/24pin
中心高度:-1.22~2.2mm
安装:双 SMT/混合型
USB3.0 连接器
中心高度:3.0~-3.4mm
产品类型:A 型
安装:T/H、SMT

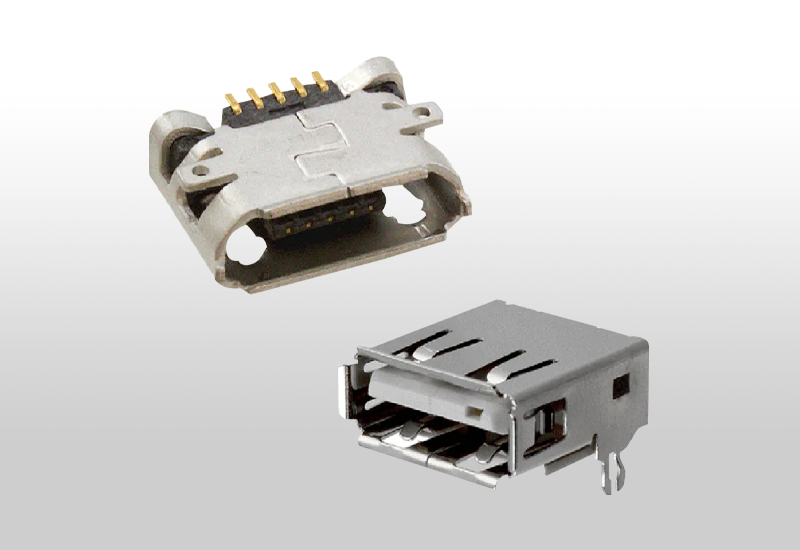

USB 2.0
USB 2.0 with various configurations, orientation, soldering and mounting options that support power delivery, data transmission rate and reliable connectivity.
SATA 连接器
类型:HDD、ODD
电路数:7、13、16、22 接脚
接触位置:T/C、B/C
SAS 连接器
间距:1.27mm、0.8mm
安装:SMT、T/H、混合、压合
操作方向:S/T、R/A
Mini Lock & Micro Lock连接器
间距:4.2mm、3.0mm
安装:SMT、T/H
排:单、双
电源连接器
电源连接器:插头和插座
电源卡缘
高速电源卡缘
FFC/FPC 连接器
间距:0.30、0.40、0.50、0.80、1.00mm
电路数:>=4 接脚
类型:后翻;前翻;ZIF、非 ZIF、锁、高速
DC 插孔连接器
直径:3Φ/4Φ/4.5Φ/6Φ
中心高度:3.4~-2.9mm
电流额定值:5~15A
电池连接器
间距:1.7-3.2mm
电路数:2-9 接脚
高度:1.7-12.8mm
HDMI 连接器
产品类型:A、D 型
中心高度:1.95~-2.92mm
安装类型:T/H、SMT

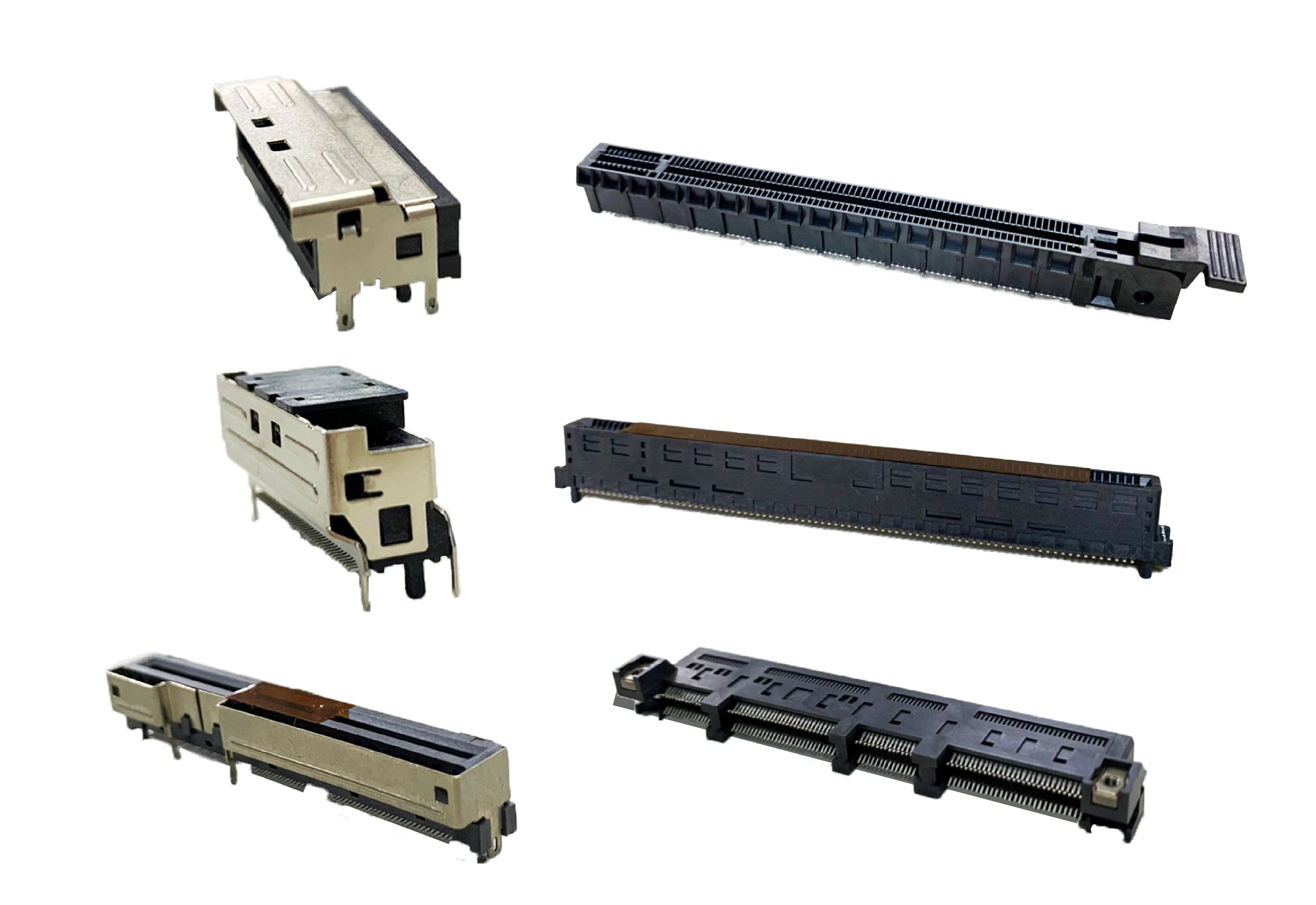

卡类连接器
MCIO
Gen Z
M.2
Card Edge
DDR5
MXM
Mini PCI express
Pin Header 连接器
间距: 1.0/1.27/2.0/2.54mm
电路数: 2-40接脚
产品高度: 1.7-12.8mm
RJ 连接器
产品类型: RJ/ RJ Transformer/ RJ Transformer USB3
类型: Standard/Sinking
端口: 1*1~2*4/Stack

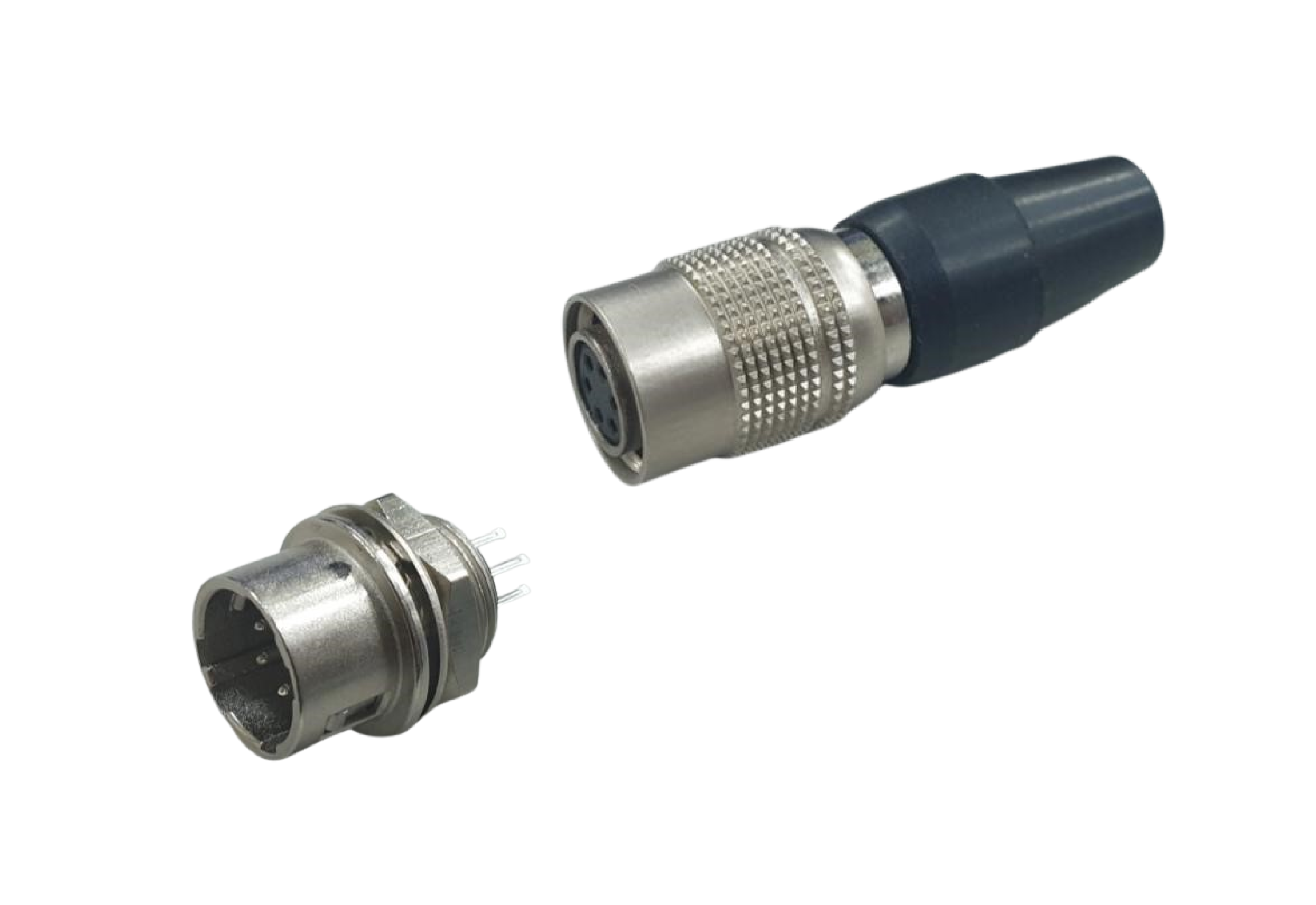

Mini Circular Push-Pull Connector
ACES Mini Circular Connector features high-density application, miniaturization, and a well-integrated design. Easy to operate, the "push-and-pull" lock structure for quick and efficient locking and unlocking.
RF CONNRCTOR
Connect Printed Circuit Boards (PCBs) And Cables To An External Antenna, Cameras, Sensors Or Other Devices.
高速连接线
线材长度: 1.0m MAX.
信号线尺寸: 30 to 32AWG
种类: 4i(38Pos), 8i(74Pos), EDSFF(GenZ) Cable, External miniSAS-HD, Internal miniSAS-HD, QSFP/QSFP+/QSFP28/QSFP56 Passive, QSFPDD Passive, SFP/SFP+/SFP28/SFP56 Passive
高速连接器
电缆长度:1.0m MAX.
信号线尺寸:30至32AWG
类型:4i(38Pos), 8i(74Pos), QSFP/QSFP+/QSFP DD/QSFP28 Passive, SFP/SFP+/SFP28 Passive
Industrial
Industrial Power/Control Wire Cable
New Energy Storage Cabinet Cable
Customized energy equipment storage electronic connection cable.

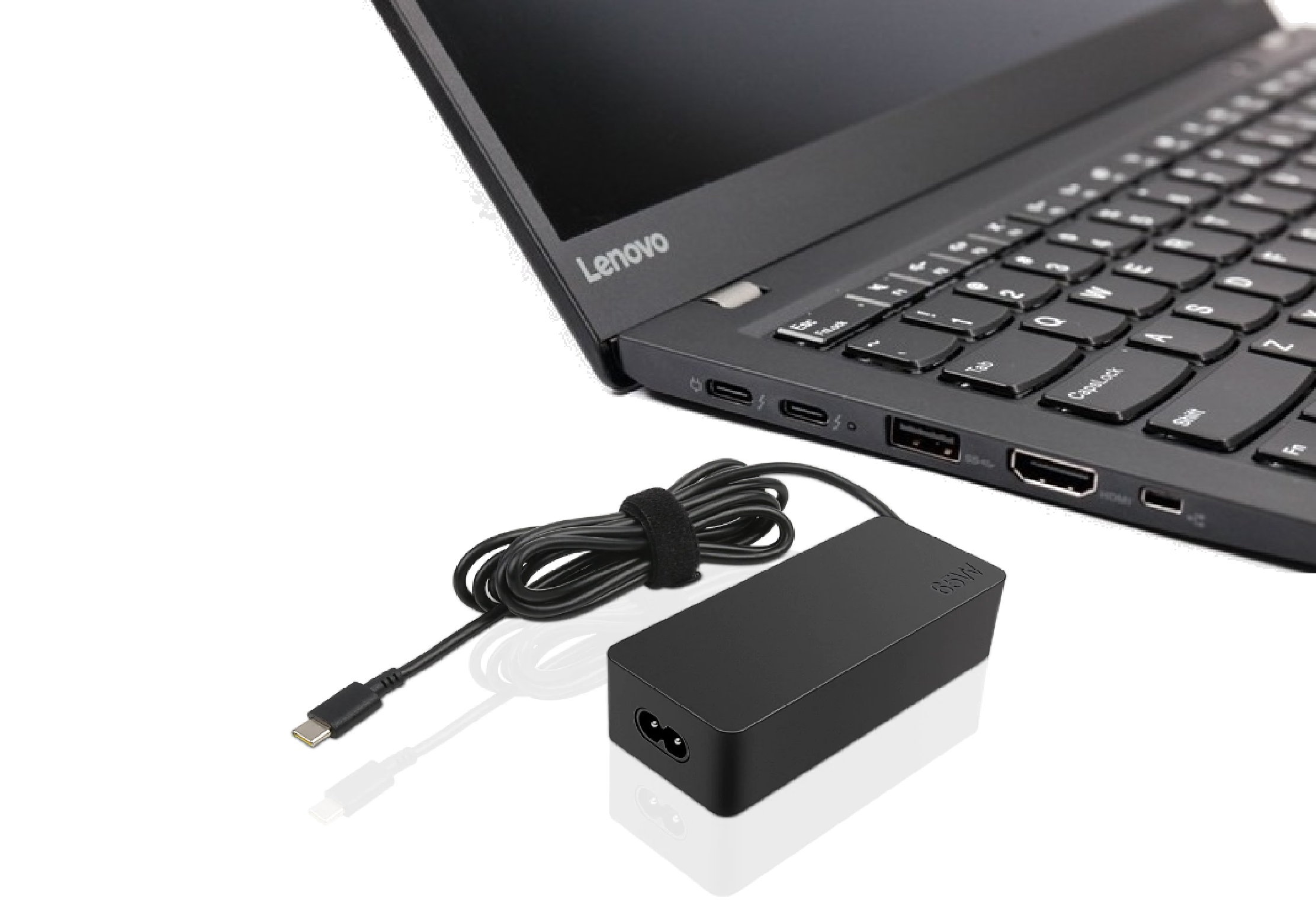

DC Power Cable
Widely used for portable power , notebook pc , mobile phone and other consumable product of power supply and transmission.
TYPE C CABLE
USB3.1 Gen1傳輸線 協會認證 Type C-C 1.0米USB-IF TID:3200,000,089)
◆本產品通過USB-IF認證
◆外銷精品 大廠承認用料
◆內建合法晶片 保證相容性最高
◆支援4K影像輸出 充電最高支援20V/3A
HDMI CABLE
高畫質 HDMI to HDMI 影音傳輸線 2.0版 公對公 電視 螢幕 投影機 連接線 支援4K HDR (1.5M)
✔頂級規格
▸升級HDMI 2.0版,支援4K高畫質
▸適用標準HDMI接口
▸加粗線芯,搭配PVC線身,柔軟耐彎折
▸採純銅線芯,訊號穩定,抗干擾
▸鍍金接口,耐插拔,使用壽命長
✔品質享受
▸畫面乾淨、細膩、通透,觀影舒適不閃爍
▸3D震撼視覺效果,生動還原,彷若身臨其境
Wire Harness
Socket
IC Socket
Pet angel
[Hardware Solution] + [Technical Service]
Product services + manufacturing services + technical services
Respiratory nebulizer
Application Range Aerosolize liquid into aerosol molecules and transmit it to the user's respiratory tract for respiratory therapy purposes
Applicable ethnic groups: Patients with asthma and chronic respiratory diseases.
Users of all ages, except patients with pulmonary edema or coma who are unable to breathe on their own.
Automotive digital multimedia integration

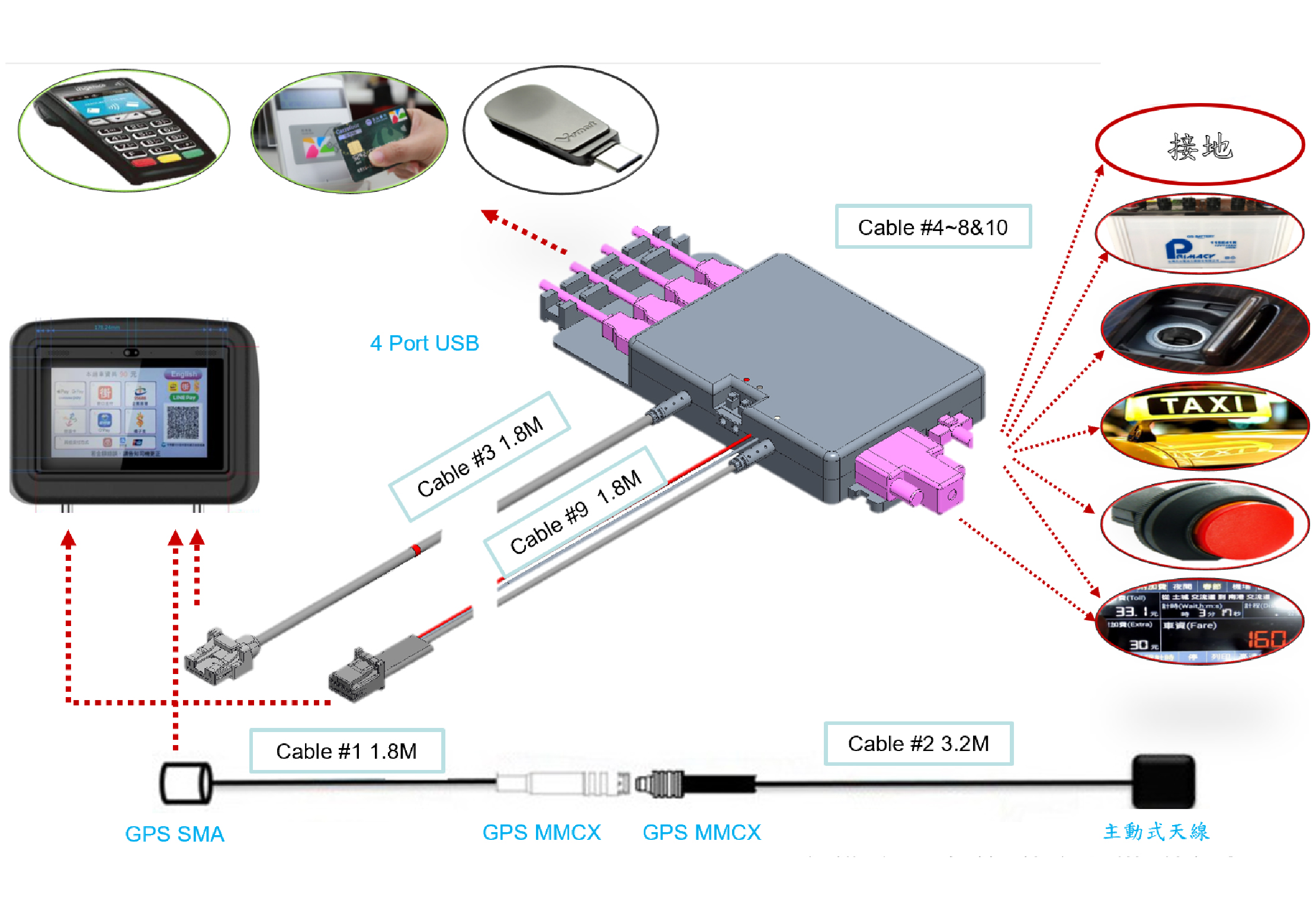

Multi-Function Hub for Taxi
Metal stamping parts
I/O SHIELDING,Bracket,CPU fan bracket,EMI Shielding,Types of medium-sized sturdy framework brackets,Mid-size computer case,Medium-sized structural components,Thin stainless steel structural parts,Types and sizes of aluminum structural exterior parts,Medium to large-sized chassis assembly components
