Terminal

Features
Pitch: 1.00~3.96mm
Current: 0.5~7A

Advance Search

Series


Family

Pitch (mm)

PCB Mounting

Operation Direction

Product Height (mm)

AWG#

Current (A)

Mates With

Outer Lock

Circuits

High Speed Support

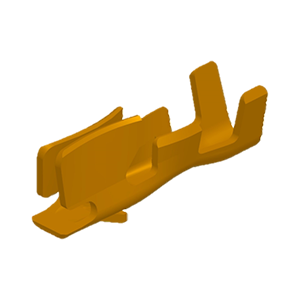

50211-Txxx-xxx

50211-Txxx-xxx

Terminal

1.00

-

-

0.00

32~34

AWG#32/0.8A, AWG#34/0.8A

Housing: 50233-xxxH/50236-xxxH/
50247-xxxH;
Wafer: 50224/50441/50228/51290/50439/
50238/50246

No

-

-

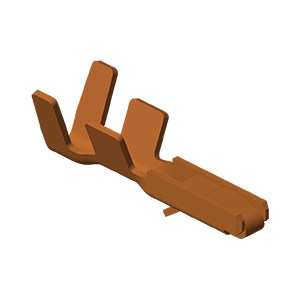

50420-Txxx

50420-Txxx

Terminal

1.00

-

-

0.00

28~32

AWG#28/1.0A, AWG#30/1.0A, AWG#32/1.0A

Housing: 50420-xxxH;
Wafer: 50419

No

-

-

50430-Txxx

50430-Txxx

Terminal

1.00

-

-

0.00

28~32

AWG28/1.0A, AWG30/1.0A, AWG32/0.8A

Housing: 50430-xxxH/50486-xxxH;
Wafer: 50435/50437/50485

No

-

-

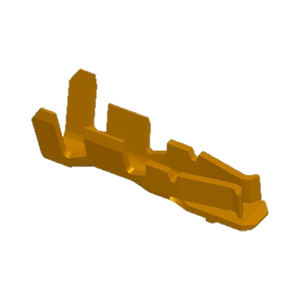

51203-Txxx-xxx

51203-Txxx-xxx

Terminal

1.50

-

-

0.00

24~26

AWG#24/4.0A, AWG#26/3.0A

Housing: 51203-xxxH;
Wafer: 51202/51271

No

-

-

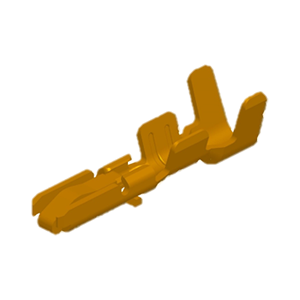

51204-Txxx-xxx

51204-Txxx-xxx

Terminal

1.00

-

-

0.00

28~32

AWG#28/1.0A, AWG#30/1.0A, AWG#32/1.0A

Housing: 51204-xxxH;
Wafer: 50264/51200

No

-

-

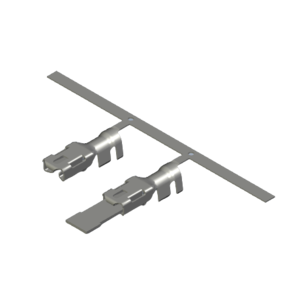

51274-Txxx-xxx

51274-Txxx-xxx

Terminal

-

-

-

0.00

10~12

AWG#10/24.0A AWG#12/20.0A

Terminal: 51464-T

No

-

-

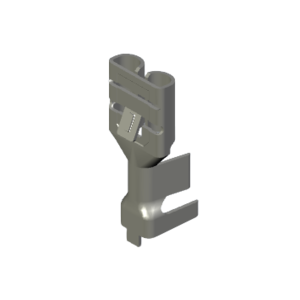

51275-Txxx-xxx

51275-Txxx-xxx

Terminal

-

-

-

0.00

12.00

AWG#12/20.0A

Terminal:51464-T

No

-

-

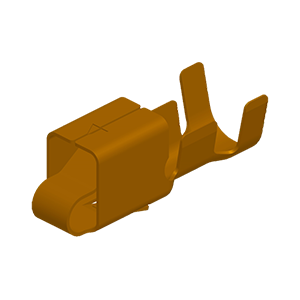

51282-Txxx-xxx

51282-Txxx-xxx

Terminal

3.96

-

-

0.00

20~22

AWG#16/10.0A, AWG#18//7.0A, AWG#20//6.0A, AWG#22/4.0A

Housing: 51282-xxxH;
Wafer:51281/51318

No

-

-

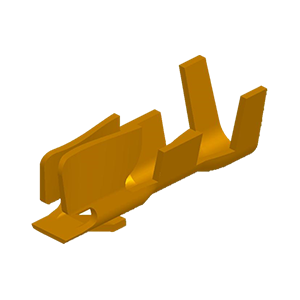

51297-T0xx-xxx

51297-T0xx-xxx

Terminal

1.00

-

-

0.00

34.00

AWG#34/0.8A

Housing: 50233-xxxH/50236-xxxH/
50247-xxxH;
Wafer: 50224/50441/50228/51290/50439/
50238/50246

No

-

-

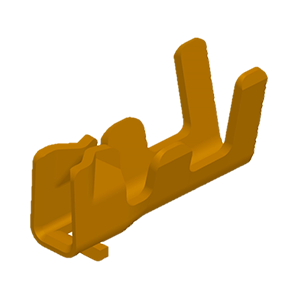

51348-Txxx-xxx

51348-Txxx-xxx

Terminal

1.25

-

-

0.00

28~32

AWG#28/1.0A, AWG#30/1.0A, AWG#32/0.8A

Housing: 50276-xxxH;
Wafer: 51241

No

-

-

51433-Txxx-xxx

51433-Txxx-xxx

Housing

0.20

Crimping

S/R

-

24~30

AWG#24 2.0A AWG#26 1.5A AWG#28 1.0A AWG#30 0.5A

Terminal: 51433-T

-

-

-

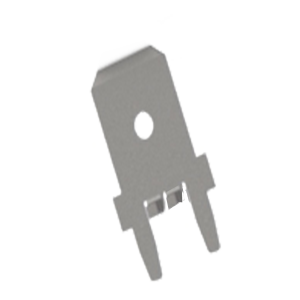

51464-Txxx-xxx

51464-Txxx-xxx

Terminal

-

T/H

S/R S/T

-

10~14

AWG#10/24.0A, AWG#12/20.0A, AWG#14/15.0A,

-

No

-

-

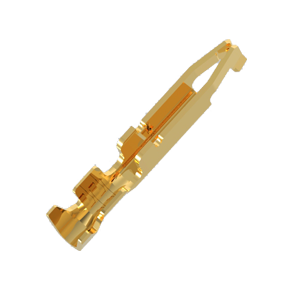

52201-Txxx-xxx

52201-Txxx-xxx

Terminal

0.80

-

-

-

30~36

AWG#30/1.2A, AWG#32/1.0A, AWG#34/0.8A, AWG#36/0.5A

Housing: 52201-xxxH; Wafer:52200

No

5

-

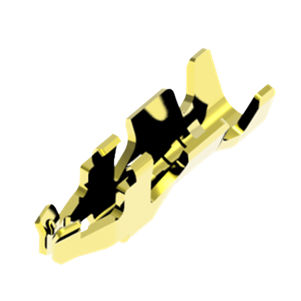

52243-Txxx-xxx

52243-Txxx-xxx

Terminal

0.80

-

-

-

30~36

AWG#30/1.2A, AWG#32/1.0A, AWG#34/0.8A, AWG#36/0.5A

Housing: 52242-xxxH

Yes

-

-

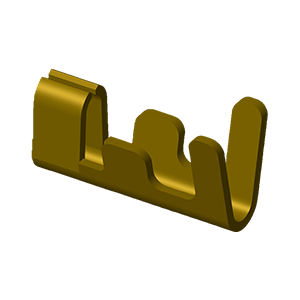

85106-T-x

85106-T-x

Terminal

1.25

-

-

0.00

28~32

AWG#28/1.0A, AWG#30/1.0A, AWG#32/0.8A

Housing: 50276-xxxH;
Wafer: 51241

No

-

-

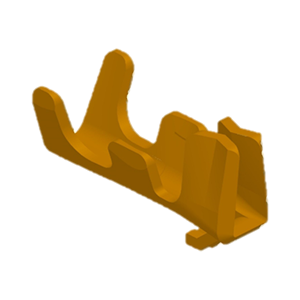

85206-T-x

85206-T-x

Terminal

1.25

-

-

0.00

28~32

AWG#28/1.0A, AWG#30/1.0A, AWG#32/0.8A

Housing: 50276-xxxH;
Wafer: 51241

No

-

-

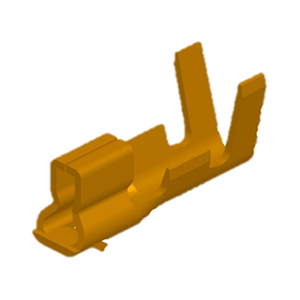

86809-T-x

86809-T-x

Terminal

2.00

-

-

0.00

26~30

AWG#26/3.0A, AWG#28/2.5A, AWG#30/1.5A

Housing: 50397-xxxH/50389-xxxH
Wafer: 50308/50311

No

-

-

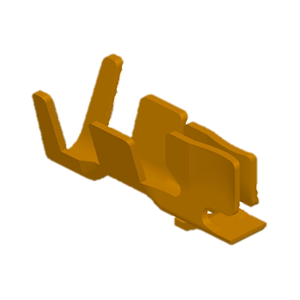

87214-Wx

87214-Wx

Terminal

1.00

-

-

0.00

28~32

AWG#28/2.0A, AWG#30/1.0A, AWG#32/1.0A

Housing: 50233-xxxH/50236-xxxH/
50247-xxxH;
Wafer: 50224/50441/50228/51290/50439/
50238/50246

No

-

-

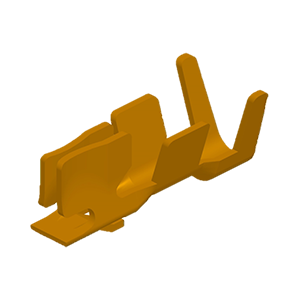

87224-T0xx

87224-T0xx

Terminal

1.00

-

-

0.00

36.00

AWG#36/0.5A

Housing: 50233-xxxH/50236-xxxH/
50247-xxxH;
Wafer: 50224/50441/50228/51290/50439/
50238/50246

No

-

-

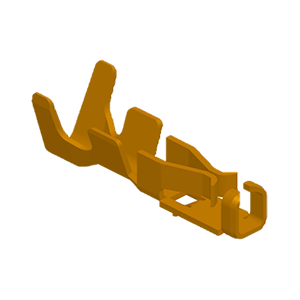

88252-00xx

88252-00xx

Terminal

1.00

-

-

0.00

28~32

AWG#28/1.0A, AWG#30/1.0A, AWG#32/0.8A

Housing: 50254-xxxH/50256-xxxH/
50258-xxxH/50259-xxxH;
Wafer: 50252/50418/50257

No

-

-

88267-W-x

88267-W-x

Terminal

1.25

-

-

0.00

28~32

AWG#28/1.0A, AWG#30/1.0A, AWG#32/0.8A

Housing: 50285-xxxH;
Wafer: 50281

No

-

-

88301-W-x

88301-W-x

Terminal

2.00

-

-

0.00

26~30

AWG#26/3.0A, AWG#28/2.5A, AWG#30/1.5A

Housing: 50303-xxxH/50304-xxxH;
Wafer: 50302

No

-

-

88332-T0xx

88332-T0xx

Terminal

1.25

-

-

0.00

34.00

AWG#34/0.8A

Housing: 50280-xxxH;
Wafer: 50277/50278/50279

No

-

-

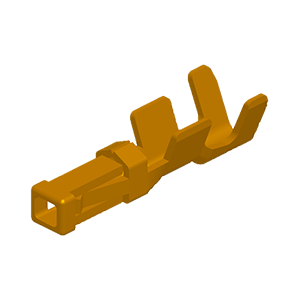

88467-Txxx

88467-Txxx

Terminal

1.25

-

-

0.00

34.00

AWG#34/0.8A

Housing: 50285-xxxH;
Wafer: 50281

No

-

-

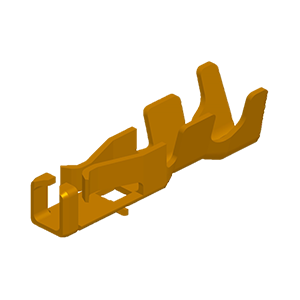

88604-000xx-xxx

88604-000xx-xxx

Terminal

1.00

-

-

0.00

32~34

AWG#32/0.8A, AWG#34/0.8A

Housing: 50254-xxxH/50256-xxxH/
50258-xxxH/50259-xxxH;
Wafer: 50252/50418/50257

No

-

-

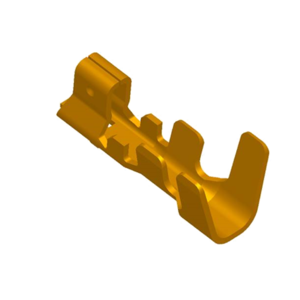

91203-000xx

91203-000xx

Terminal

1.50

-

-

0.00

24~30

AWG#24/3.0A, AWG#26/3.0A, AWG#28/2.5A, AWG#30/1.0A

Housing: 50294-xxxH;
Wafer: 50290/50291/50292/50293/50481/
50493

No

-

-

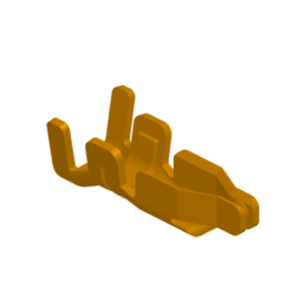

91224-0000x

91224-0000x

Terminal

1.20

-

-

0.00

28~32

AWG#28/3.0A, AWG#30/2.0A, AWG#32/1.0A

Housing:50270-xxxH;Wafer:51220,51273

No

-

-

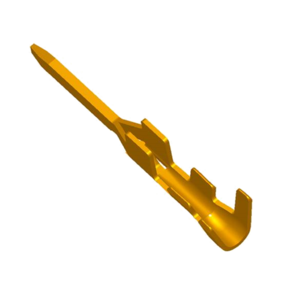

91225-0000x

91225-0000x

Terminal

1.00

-

-

0.00

28~32

AWG#28/1.0A, AWG#30/1.0A, AWG#32/0.8A

Housing: 50233-xxxH;
Housing: 50237-xxxH (WTW);
Terminal: 87214-W (AWG28~32)

No

-

-

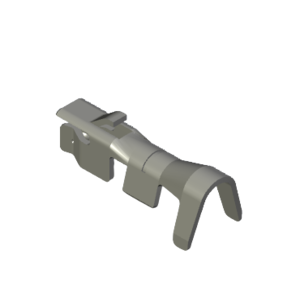

92254-xxxxx-xxx

92254-xxxxx-xxx

Terminal

1.00

-

S/R S/T

-

28,30

AWG#28 1.0A AWG#30 1.0A

Wafer: 92252

No

4,7,8,12

-
