Electrical
Voltage: 30V DC
Current: AWG#28/1.0A
AWG#30/1.0A
AWG#32/0.8A
Contact Resistance: 10mΩ max
Dielectric Withstanding Voltage: 500 V AC MIN
Insulation Resistance: 100 MΩ min.
Operating Temp: -40℃~ +85℃
Reference
Mated P/N：50430
Specification(Abbreviation)

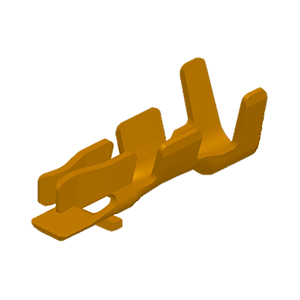

Family: Terminal
Pitch (mm): 1
Product Height (mm): 0
AWG#: 28~32
Current (A): AWG28/1.0A, AWG30/1.0A, AWG32/0.8A
Mates With: Housing: 50430-xxxH/50486-xxxH; Wafer: 50435/50437/50485
Outer Lock: No
