Housing

Features
Pitch: 1.00~3.96mm
Circuits: 2~50 pins
Row: Single, Double

Advance Search

Series


Family

Pitch (mm)

PCB Mounting

Operation Direction

Product Height (mm)

AWG#

Current (A)

Mates With

Outer Lock

Circuits

High Speed Support

50233-xxxHxxx-xxx

50233-xxxHxxx-xxx

Housing

1.00

-

S/R

0.00

-

-

Terminal: 87214-W(AWG28~32)/50211-T(AWG34)/87224-T(AWG36);
Wafer: 50224/50441/50228/51290;
Housing:

No

2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,22,24,26,28,30

-

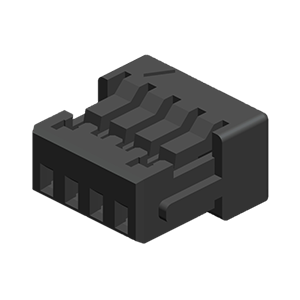

50236-xxxHxxx-xxx

50236-xxxHxxx-xxx

Housing

1.00

-

S/R

0.00

-

-

Terminal: 87214-Wx(AWG28~32)/
50211-T(AWG34)/87224-T(AWG36);
Wafer: 50224/50441/50228/50439

No

2,3,4,5,6

-

50237-xxxHxxx-xxx

50237-xxxHxxx-xxx

Housing

1.00

-

S/R

0.00

-

-

Terminal: 91225-0000x(AWG28~32);
Housing: 50233-xxxH(WTW);
Terminal: 87214-W(AWG28~32)

No

2,3,4,6,7

-

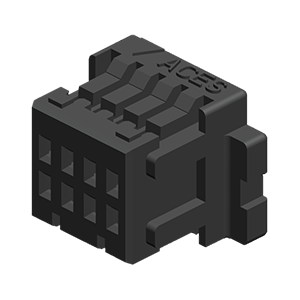

50247-xxxHxxx-xxx

50247-xxxHxxx-xxx

Housing

1.00

-

D/R

0.00

-

-

Terminal: 87214-W(AWG28~32)/
50211-T(AWG32~34)/87224-T(AWG36);
Wafer: 50238/50246

No

8,10,14,16,18,20,22,28,30,34,40,50,60

-

50254-xxxHxxx-xxx

50254-xxxHxxx-xxx

Housing

1.00

-

D/R

0.00

-

-

Terminal: 88252-00xx(AWG28~32)/
88604-000x(AWG34);
Wafer: 50252

No

10,12,16,20,22,24,26,30,40,46, 50

-

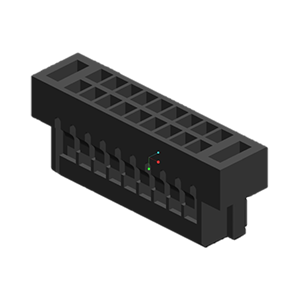

50256-xxxHxxx-xxx

50256-xxxHxxx-xxx

Housing

1.00

-

D/R

0.00

-

-

Terminal: 88252-00xx(AWG28~32)/
88604-000x(AWG34);
Wafer: 50418

No

20,22,30,40,46,50

-

50258-xxxHxxx-xxx

50258-xxxHxxx-xxx

Housing

1.00

-

D/R

0.00

-

-

Terminal: 88252-00xx(AWG28~32);
Wafer: 50257

No

22,30,40,50

-

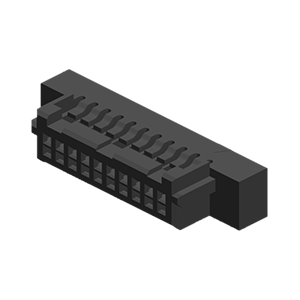

50259-xxxHxxx-xxx

50259-xxxHxxx-xxx

Housing

1.00

-

D/R

0.00

-

-

Terminal: 88252-00xx(AWG28~32);
Wafer: 50257

No

40

-

50270-xxxHxxx-005

50270-xxxHxxx-005

Housing

1.20

-

D/R

0.00

-

-

Terminal: 91224-0000x(AWG28~30);
Wafer: 51220/51273

No

2,3,4,5,6,7,8,9,10

-

50276-xxxHxxx-xxx

50276-xxxHxxx-xxx

Housing

1.25

-

S/R

0.00

-

-

Terminal: 85106-T(AWG32~34)/85206-T(AWG28~32)/51348-T(AWG28~32);
Wafer: 51241/51311/51289

No

2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20

-

50280-xxxHxxx-xxx

50280-xxxHxxx-xxx

Housing

1.25

-

S/R

0.00

-

-

Terminal: 88232-T(AWG26~32)/
88332-T(AWG34);
Wafer: 50277/50278/50279

No

2,3,4,5,6,7,8,9,10,11,12,14,15,16,18,20,22,24,26,28,30

-

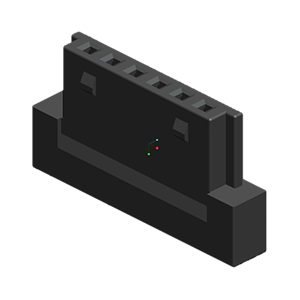

50285-xxxHxxx-xxx

50285-xxxHxxx-xxx

Housing

1.25

-

S/R

0.00

-

-

Terminal: 88267-W(AWG28~32)/
88467-T(AWG34);
Wafer: 50281

No

2,3,4,5,6,7,8,10,12,14,15,16,20,25

-

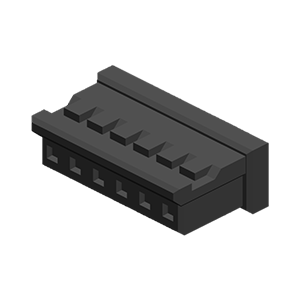

50294-xxxHxxx-xxx

50294-xxxHxxx-xxx

Housing

1.50

-

S/R

0.00

-

-

Terminal: 91203-000xx(AWG 24~30);
Wafer: 50292/50293;
Housing: 51207-xxxH(WTW);
Terminal: 51207-T

No

2,3,4,5,6,7,8,9,10,11,12,13,15,14,18

-

50303-xxxHxxx-xxx

50303-xxxHxxx-xxx

Housing

2.00

-

S/R

0.00

-

-

Terminal: 88301-W(AWG26~30);
Wafer: 50302

No

3,4,5,6,7,8,9,10,11,12,14

-

50304-xxxHxxx-xxx

50304-xxxHxxx-xxx

Housing

2.00

-

S/R

0.00

-

-

Terminal: 88301-W(AWG26~30);
Wafer: 50302

No

2,6,8,10,11

-

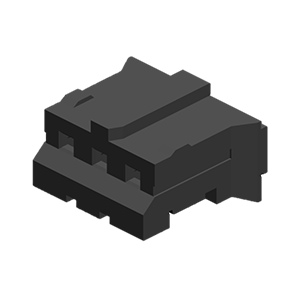

50389-xxxHxxx-xxx

50389-xxxHxxx-xxx

Housing

2.00

-

S/R

0.00

-

-

Terminal: 86809-T(AWG24~30);
Wafer: 50308

No

2,3,4,5,6,7,8,9,10,11,12,13,14

-

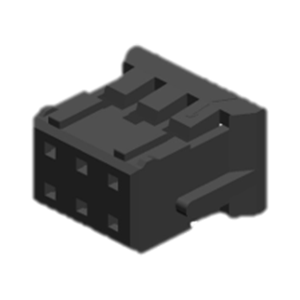

50390-xxxHxxx-xxx

50390-xxxHxxx-xxx

Housing

2.00

-

D/R

0.00

-

-

Terminal: 51303-T(AWG24~28);
Wafer: 59011/59012

Yes

4,6,8,10,12,14,18,20,22,26,34

-

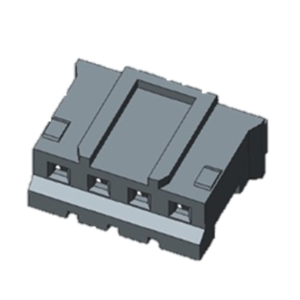

50397-xxxHxxx-xxx

50397-xxxHxxx-xxx

Housing

2.00

-

S/R

0.00

-

-

Terminal: 86809-T(AWG24~30);
Wafer: 50311

No

2,3,4,5,6,7,8,9,10,11,12,13,14,15,16

-

50409-xxxHxxx-xxx

50409-xxxHxxx-xxx

Housing

1.00

-

S/R

0.00

-

-

Terminal: 87214-W(AWG28~32)/
50211-T(AWG32~34)/87224-T(AWG36);
Wafer: 50408

No

6,30

-

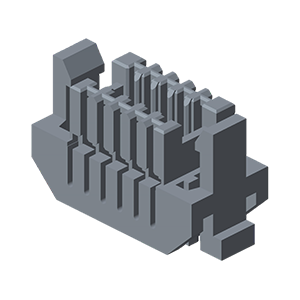

50420-xxxHxxx-xxx

50420-xxxHxxx-xxx

Housing

1.00

-

D/R

0.00

-

-

Terminal: 50420-T;
Wafer: 50419

Yes

10,12,20,24,30,40,50

-

50430-xxxHxxx-001

50430-xxxHxxx-001

Housing

1.00

-

S/R

0.00

-

-

Terminal: 50430-T;
Wafer: 50429

Yes

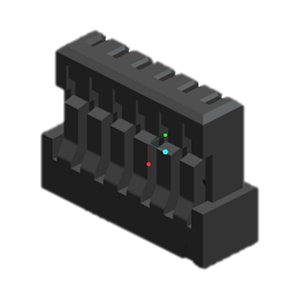

3,4,5,6,8

-

50436-xxxHxxx-001

50436-xxxHxxx-001

Housing

1.00

-

S/R

0.00

-

-

Terminal: 50430-T;
Wafer: 50435

No

6

-

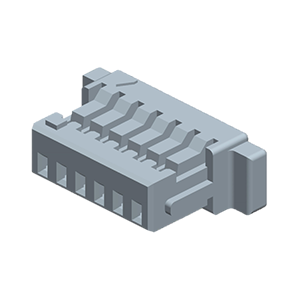

50440-xxxHxxx-xxx

50440-xxxHxxx-xxx

Housing

1.00

-

S/R

0.00

-

-

Terminal: 87214-W(AWG28~32)/
50211-T(AWG32~34)/87224-T(AWG36);
Wafer: 50438/50439

No

12,14,16,18,20,24

-

50446-xxxHxxx-xxx

50446-xxxHxxx-xxx

Housing

1.00

-

S/R

0.00

-

-

Terminal: 87214-W(AWG28~32)/
50211-T(AWG34)/87224-T(AWG36);
Wafer: 50439

No

4,6,10,12,14,20

-

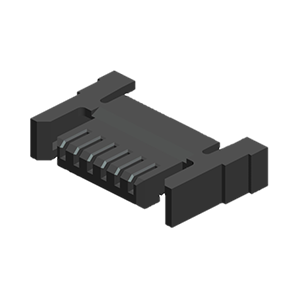

50486-xxxHxxx-xxx

50486-xxxHxxx-xxx

Housing

1.00

-

S/R

0.00

-

-

Terminal: 50430-T(AWG28~32);
Wafer: 50485

Yes

6,8,10,12

-

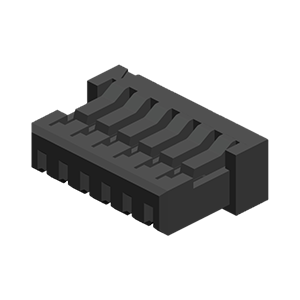

50494-xxxHxxx-xxx

50494-xxxHxxx-xxx

Housing

1.00

-

S/R

0.00

-

-

Terminal: 50430-T(AWG28~32);
Wafer: 50435

No

6

-

51203-xxxxx-xxx

51203-xxxxx-xxx

Housing

1.50

SMT

S/R R/A

-

24~26

AWG#24/4.0A, AWG#26/3.0A

Terminal: 51203-T

No

2,4,5,6,7,9

-

51204-xxxHxxx-xxx

51204-xxxHxxx-xxx

Housing

1.00

-

S/R

0.00

-

-

Terminal: 51204-T(AWG28~32);
Wafer: 50264/51200

No

5,6,26,30

-

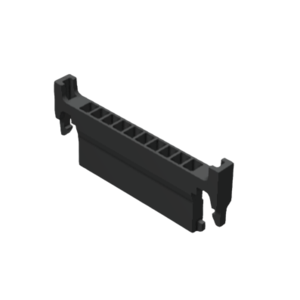

51215-xxxHxxx-xxx

51215-xxxHxxx-xxx

Housing

1.25

-

S/R

0.00

-

-

Terminal: 88232-T

No

10,14

-

51282-xxxHxxx-xxx

51282-xxxHxxx-xxx

Housing

3.96

-

S/R

0.00

-

-

Terminal: 51282-T01L-001 (AWG#20~22)/
51282-T01L-002 (AWG#16~18);
Wafer: 51281/51318

Yes

2,3,4,5

-

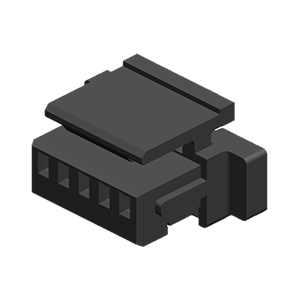

51287-xxxHxxx-xxx

51287-xxxHxxx-xxx

Housing

1.00

-

S/R

0.00

-

-

Terminal: 87214-W(AWG28~32)/50211-T(AWG34)/87224-T(AWG36);
Wafer: 51262

Yes

5,6,10,18

-

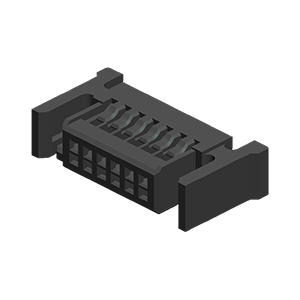

51292-xxxHxxx-xxx

51292-xxxHxxx-xxx

Housing

1.00

-

D/R

0.00

-

-

Terminal: 88604-000x(AWG34);
Wafer: 51291

Yes

12,40

-

51310-xxxHxxx-xxx

51310-xxxHxxx-xxx

Housing

2.00

-

S/R

0.00

-

-

Terminal: 51206-T;
Wafer: 50318

Yes

4

-

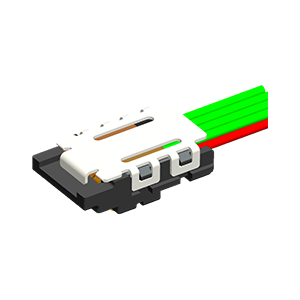

51329-xxxxx-xxx

51329-xxxxx-xxx

Housing

0.40

-

D/R

0.00

-

-

51328

No

6,8

-

51330-xxxHxxx-xxx

51330-xxxHxxx-xxx

Housing

1.25

-

S/R

0.00

-

-

Terminal: 88232-T(AWG26~32)/
88332-T(AWG34);
Wafer: 50277/50278/50279

No

2

-

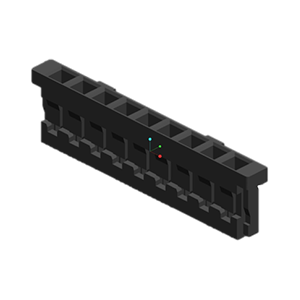

51371-xxxHxxx-xxx

51371-xxxHxxx-xxx

Housing

2.00

-

S/R

0.00

-

-

Terminal: 50459-T(AWG24);
Housing: 51370

No

9

-

51385-xxxxx-xxx

51385-xxxxx-xxx

Housing

1.00

SMT

D/R R/A

4.90

28~36


Terminal 87214-W： AWG#28/2.0A, AWG#30/1.0A, AWG#32/1.0A
Terminal 50211-T： AWG#32/0.8A

Terminal: 87214-W(AWG#28,30,32);50211-T-x(AWG#34);87224-T(AWG#36)
Wafer: 51384

No

24

-

51391-xxxHxxx-xxx

51391-xxxHxxx-xxx

Housing

1.25

-

-

-

-

-

-

-

20,40,50

-

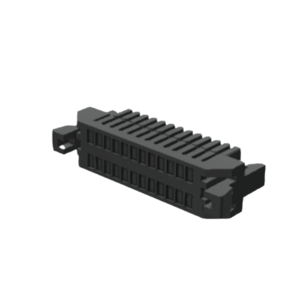

51409-xxxxx-xxx

51409-xxxxx-xxx

Housing

1.00

SMT

D/R S/T

-

28~32

AWG#28/1.0A, AWG#30/1.0A, AWG#32/1.0A

Terminal: 50420-T

Yes

20,24,30

-

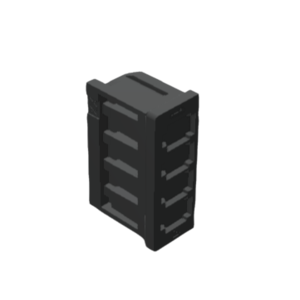

51433-xxxHxxx-xxx

51433-xxxHxxx-xxx

Housing

2.00

-

S/R

3.15

24~30

AWG#24 2.0A AWG#26 1.5A AWG#28 1.0A AWG#30 0.5A

Terminal: 51433-T

-

3,4,6

-

51452-xxxHxxx-001

51452-xxxHxxx-001

Housing

1.25

-

-

4.15

26~30

AWG#26/1.5A, AWG#28/1.5A, AWG#30/1.0A

-

-

2,3,4,5,6,7,8,9,10,11,12,13,14,15

-

51457-xxxHxxx-001

51457-xxxHxxx-001

Housing

0.80

-

S/R

-

32~36

AWG#32 1.0A AWG#34 0.2A AWG#36 0.2A

Terminal:51457-T

-

2,3,4,5,10,12,16

-

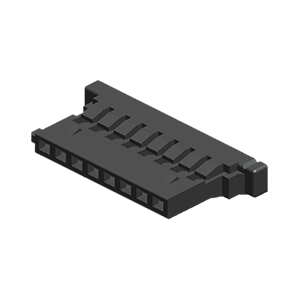

51484-xxxHxxx-xxx

51484-xxxHxxx-xxx

Housing

1.25

-

S/R

0.00

-

-

Terminal: 88232-T(AWG28~32)/
88332-T(AWG34);
Wafer: 51280/51483

No

5,7,8,10,11,12

-

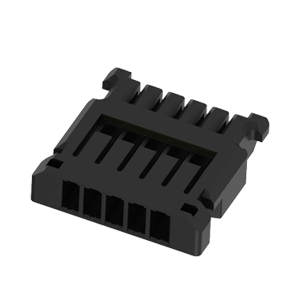

52201-xxxHxxx-xxx

52201-xxxHxxx-xxx

Housing

0.80

-

S/R

-

30~36

-

Terminal: 52201-T(AWG30~36); Wafer:52200

No

5

-

52243-xxxHxxx-xxx

52243-xxxHxxx-xxx

Housing

0.80

-

S/R

-

30~36

-

Terminal: 52243-T

Yes

4,5,6,10

-

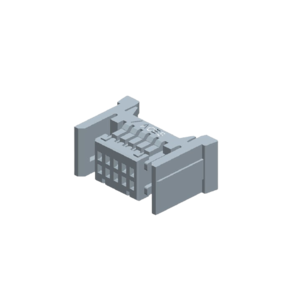

52254-xxxHxxx-xxx

52254-xxxHxxx-xxx

Housing

1.00

-

S/R

0.00

-

-

-

No

10

-

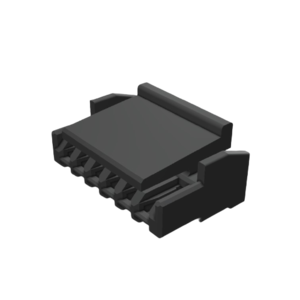

71206-xxxHxxx-xxx

71206-xxxHxxx-xxx

Housing

1.25

-

-

-

-

-

-

-

2,3,4,5,6,7,8,9,10,11,12,13,14,15

-

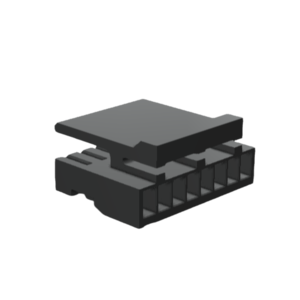

92253-xxxxx-xxx

92253-xxxxx-xxx

Housing

1.00

-

S/R

-

28,30

AWG#28 1.0A AWG#30 1.0A

Terminal:9 2254-T

No

4,7,8,12

-
