IDC Male

Features
Pitch: 0.60~1.25mm
Circuits: 2~18 pins
Mounting Type: SMT
Operation Direction: R/A, S/T
Row: Single Row

Advance Search

Series


Family

Pitch (mm)

PCB Mounting

Operation Direction

Product Height (mm)

AWG#

Current (A)

Mates With

Outer Lock

Circuits

High Speed Support

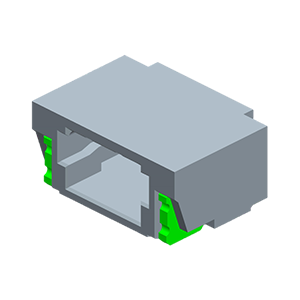

50208-xxxxx-xxx

IDC Male

0.80

SMT

S/R R/A

1.70

32.00

0.7A

50375(AWG32)/50410(AWG34)/50417(AWG36)

No

2,3,4,5,6,7,8,9,10,11,12,14,15,16,18

-

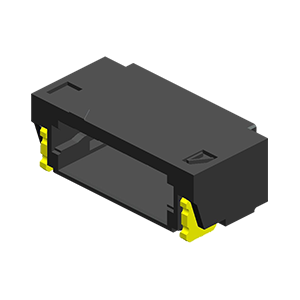

50209-xxxxx-xxx

IDC Male

0.80

SMT

S/R R/A

1.85

32.00

0.7A

50375(AWG32)/50410(AWG34)/50417(AWG36)

No

2,3,4,5,6,7,8,10,11,12,14,15,16

-

50214-xxxxx-xxx

IDC Male

1.00

SMT

S/R R/A

2.00

32.00

0.5A

50216(AWG32)

No

2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19

-

50376-xxxxx-xxx

IDC Male

0.60

SMT

S/R R/A

1.58

34~36

0.5A

51223(AWG36)/51224(AWG34)

No

2,4,5,6,7,8,10,12,14,16

-

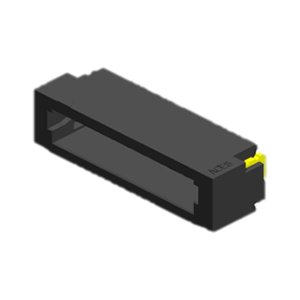

50450-xxxxx-xxx

IDC Male

0.80

SMT

S/R S/T

2.75

32.00

0.7A

50375(AWG32)/50410(AWG34)/50417(AWG36)

No

6,8,10,12,16

-

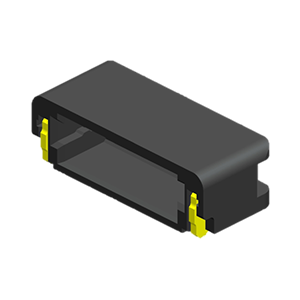

50499-xxxxx-xxx

IDC Male

0.60

SMT

S/R R/A

1.53

34~36

0.5A

51223(AWG36)/51224(AWG34)

No

5

-

51232-xxxxx-xxx

IDC Male

0.80

SMT

S/R R/A

1.20

32.00

1.0A

51233

No

2

-

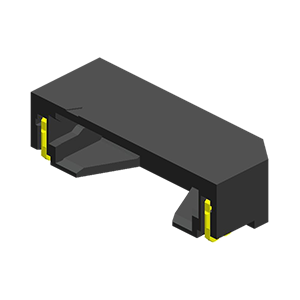

51300-xxxxx-xxx

IDC Male

0.60

SMT

S/R R/A

1.48

34~36

0.5A

51223(AWG36)/51224(AWG34)

No

6

-

51309-xxxxx-xxx

IDC Male

1.25

SMT

S/R S/T

4.15

26.00

2.0A

51308

Yes

6

-

51493-xxxxx-xxx

IDC Male

0.80

SMT

S/R S/T

1.00

32.00

1.0A

51494

No

2

-
