Electrical
Voltage: 100Volts AC(Per Pin)
Current:
AWG#34/1.0A
AWG#36/0.8A
AWG#38/0.5A
AWG#40/0.3A
AWG#42/0.24A
AWG#44/0.1A
Contact Resistance: 180mΩ MAX.(AWG#34)~1080mΩ MAX. (AWG#44) (INITIAL)
Dielectric Withstanding Voltage: 250VAC MIN.
Insulation Resistance: 1000MΩ MIN.
Operating Temperature: -40
Product Video
Specification(Abbreviation)

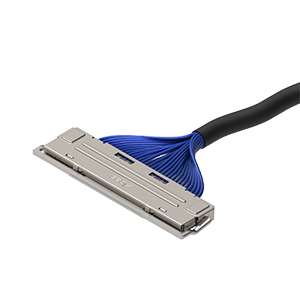

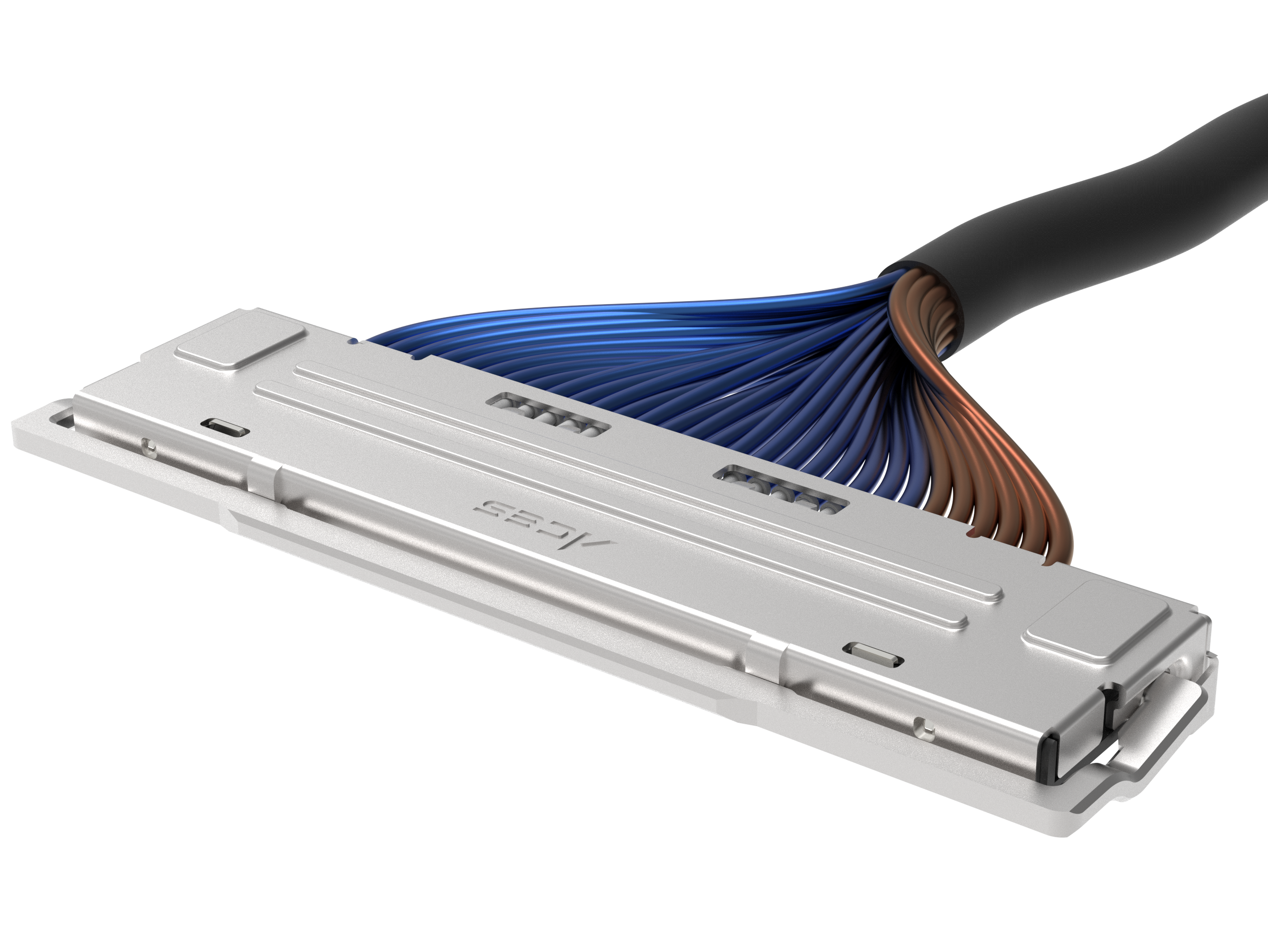

Family: Fully Shielded Type
Pitch (mm): 0.4
Product Height (mm): 2.04
AWG#: 34~44
Current (A): AWG#34/1.0A, AWG#36/0.8A, AWG#38/0.5A, AWG#40/0.3A, AWG#42/0.24A, AWG#44/0.1A
Mates With: 51495
Outer Lock: Yes
Circuits: 20,30,40
High Speed Support: USB 3.2 Gen 2(10Gbps), eDP HBR 3 (8.1 Gbps), PCIe Gen 4 (16GT/s), Thunderbolt 3 (20Gbps)
Download > 3D
20 30 40Download
2D
SPEC
3D
