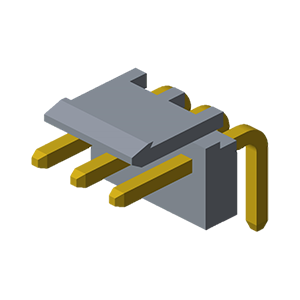

51318-xxxxx-xxx

Electrical

Voltage: 250 V AC ,DC
Current Rating: AWG#16/10.0 A
AWG#18/7.0 A
AWG#20/6.0 A
AWG#22/4.0 A
Contact Resistance:20 m Max.(initial)per contact △R 20 m Max.
Insulation Resistance 500 M Min.
Dielectric Withstanding Voltage:300V AC Min. Operating Temperature : -40℃ to +85℃



Specification(Abbreviation)

Family: Wafer

Pitch (mm): 3.96

PCB Mounting: T/H

Operation Direction: S/R R/A

Product Height (mm): 8.5

AWG#: 16~22

Current (A): AWG#16/10.0A, AWG#18//7.0A, AWG#20//6.0A, AWG#22/4.0A

Mates With: Housing: 51282-xxxH; Terminal: 51282-T01L-001(AWG#20~22)/ 51282-T01L-002 (AWG#16~18)

Outer Lock: Yes

Circuits: 2,3
