Electrical
Voltage: 50 Volts AC (per pin)
Current: AWG#30/2.0 A
AWG#28/3.0 A
Contact Resistance: 20 mΩ max.
Dielectric Withstanding Voltage 500 VAC Min.
Insulation Resistance: 100 MΩ min.
Operating Temp. : -25℃ ~ +85℃
Specification(Abbreviation)

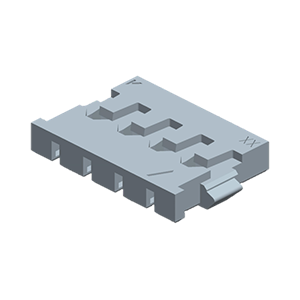

Family: Housing
Pitch (mm): 1.2
Operation Direction: S/R
Product Height (mm): 0
Mates With: Terminal: 51270-T(AWG#30); Wafer: 51269
Outer Lock: No
Circuits: 2,3,6
