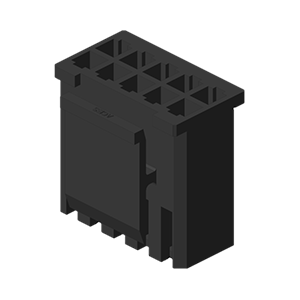

50479-xxxHxxx-xxx

Electrical

Voltage: 250 Volts AC (per pin)
Current: AWG#22 ~ AWG#30/3.0A
Contact Resistance: 10 m Ω Max.(initial)per contact
20 m Ω Max. Change allowed
Dielectric Withstanding Voltage: 300 VAC Min.
Insulation Resistance: 1000 M Ω Min.
Operating Temperature : -35℃ to +105℃



Specification(Abbreviation)

Family: Housing

Pitch (mm): 2.54

Operation Direction: D/R

Product Height (mm): 0

Mates With: 91228-T0XX(AWG22~30)

Outer Lock: Yes

Circuits: 6,8,10,12,16,20
