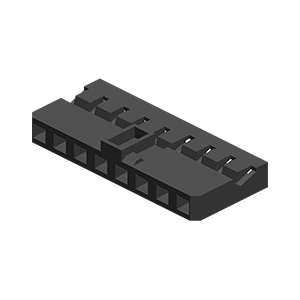

50457-xxxHxxx-xxx

Electrical

Voltage: 200V AC (r.m.s)
Current: AWG#26/3.0A
AWG#28/2.5A
AWG#30/1.5 A
Contact Resistance: 25mΩ max.
Dielectric Withstanding Voltage: 500V AC/rms
Insulation Resistance: 1000 MΩ min.
Operating Temp. : -40℃ ~ +85℃

Reference

Mated P/N：50456



Specification(Abbreviation)

Family: Housing

Pitch (mm): 2

Operation Direction: S/R

Product Height (mm): 0

Mates With: 50456 88301-W(AWG26~30)

Outer Lock: No

Circuits: 8
