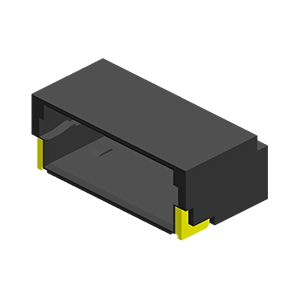

50408-xxxxx-xxx

Electrical

Voltage: 50 Volts AC (per pin)
Current: AWG#28/2.0A
AWG#30/1.0A
AWG#32/1.0A
AWG#34/0.8A
Contact Resistance: 10 mΩ max.
Dielectric Withstanding Voltage: 500V AC Min.
Insulation Resistance: 10P0MΩ min.
Operating Temp. : -40℃ ~ +85℃

Reference

Mated P/N：50409 87214-T



Specification(Abbreviation)

Family: Wafer

Pitch (mm): 1

PCB Mounting: SMT

Operation Direction: S/R R/A

Product Height (mm): 3

AWG#: 28~34

Current (A): AWG#28/2.0A, AWG#30/1.0A, AWG#32/1.0A, AWG#34/0.8A

Mates With: Housing: 50409-xxxH; Terminal: 87214-W(AWG28~32)/ 50211-T(AW32~G34)/87224-T(AWG36)

Outer Lock: No

Circuits: 6,30
