Back Flip Type

Features
Pitch: 0.30-1.00mm
Circuits: >=4 pins
Contact Position: D/C, T/C
Mounting Type: SMT
Operation Direction: R/A
Product Height: 1.00-2.45mm
Cable Thickness: 0.2 & 0.3mm

Advance Search

Series


Family

Pitch (mm)

PCB Mounting

Operation Direction

Product Height (mm)

CableType

Contact Position

Cable Thickness(mm)

Circuits

High Speed Support

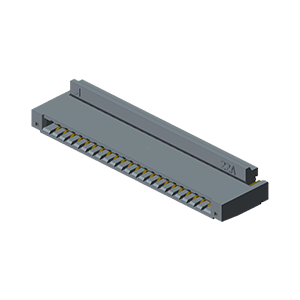

50696-xxxxx-002

50696-xxxxx-002

Back Flip Easy-on

0.50

SMT

R/A

1.06

normal

D/C

0.3±0.03

4,5,6,8,9,10,11,12,14,15,16,17,20,21,22,24,26,28,30

USB3.0 (5Gbps)

50698-xxxxx-xxx

50698-xxxxx-xxx

Back Flip Easy-on

1.00

SMT

R/A

2.45

With Ear

D/C

0.3±0.03

4,28,30,32

-

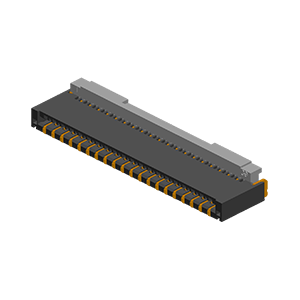

51511-xxxxx-xxx

51511-xxxxx-xxx

Back Flip Easy-on

0.30

SMT

R/A

1.10

normal

D/C

0.2±0.03

11,13,15,17, 21,20,23,25,31,35,39,45

-

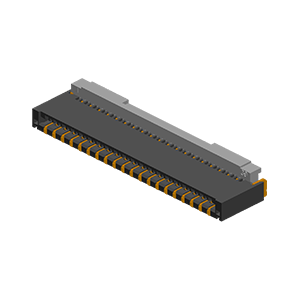

51515-xxxxx-xxx

51515-xxxxx-xxx

Back Flip Easy-on

0.30

SMT

R/A

1.10

normal

D/C

0.2±0.03

11,15,17,21,23,25,31,33,35,39,41,45,51,61,63

-

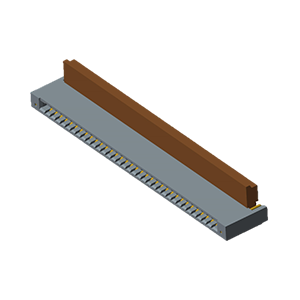

51538-xxxxx-001

51538-xxxxx-001

Back Flip Easy-on

0.50

SMT

R/A

1.06

normal

D/C

0.3±0.03

32,34,40

-

51539-xxxxx-001

51539-xxxxx-001

Back Flip Easy-on

0.50

SMT

R/A

1.20

With Notch

D/C

0.3±0.03

8,10,12,14,30

SATA Gen 3(6Gbps)

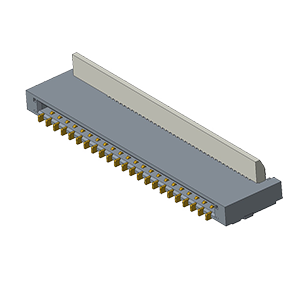

51585-xxxxx-xxx

51585-xxxxx-xxx

Back Flip Easy-on

0.30

SMT

R/A

1.00

Normal

T/C

0.2±0.03

13,15,17,19,21,23,25,27,29,31,33,35, 39,41,45,51

-

51589-xxxxx-xxx

51589-xxxxx-xxx

Back Flip Easy-on

0.30

SMT

R/A

1.10

Normal

D/C

0.2±0.03

9,11,15,19,21,25,31,33,35,39,51

-

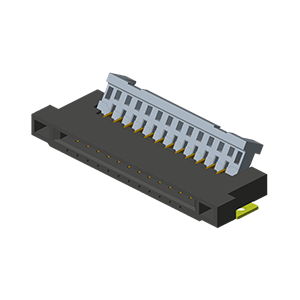

51591-xxxxx-xxx

51591-xxxxx-xxx

Back Flip Easy-on

0.80

SMT

R/A

1.50

Normal

D/C

0.3±0.03

24,26,30

-

51592-xxxxx-xxx

51592-xxxxx-xxx

Back Flip Easy-on

1.00

SMT

R/A

1.50

Normal

D/C

0.3±0.03

10,24,26

-

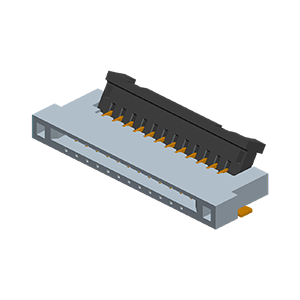

51596-xxxxx-xxx

51596-xxxxx-xxx

Back Flip Easy-on

0.80

SMT

R/A

1.50

Normal

T/C

0.3±0.03

26

-

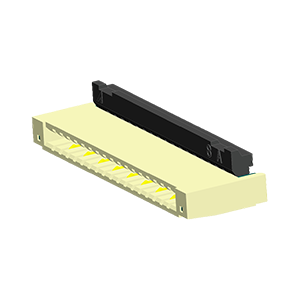

51601-xxxxx-001

51601-xxxxx-001

Back Flip Easy-on

1.00

SMT

R/A

1.06

Normal

D/C

0.3±0.03

4,6,8,10

-

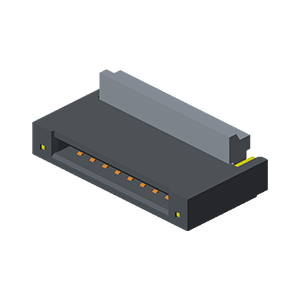

51622-xxxxx-xxx

51622-xxxxx-xxx

Back Flip Easy-on

0.50

SMT

R/A

1.06

Normal

D/C

0.2±0.03

6,8

-

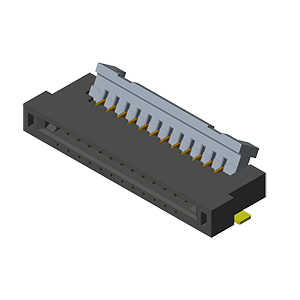

51631-xxxxx-xxx

51631-xxxxx-xxx

Back Flip Easy-on

0.80

SMT

R/A

1.50

With Notch

D/C

0.2±0.03

30

-

51642-xxxxx-xxx

51642-xxxxx-xxx

Back Flip Easy-on

0.50

SMT

R/A

1.60

With Ear

D/C

0.3±0.03

42

-

51688-xxxxx-xxx

51688-xxxxx-xxx

Back Flip Easy-on

0.30

SMT

R/A

0.95

Normal

D/C

0.2±0.03

9,11,13,21,23,25,31,33,37,39,41,45,51

-

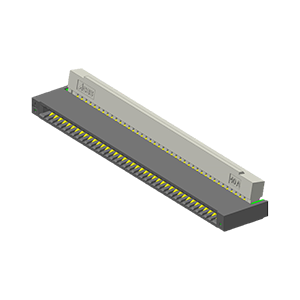

51692-xxxxx-xxx

51692-xxxxx-xxx

Back Flip Easy-on

0.40

SMT

R/A

1.00

Normal

D/C

0.3±0.03

40,50

-

51697-xxxxx-xxx

51697-xxxxx-xxx

Back Flip Easy-on

0.50

SMT

R/A

1.60

With Ear

D/C

0.3±0.03

42

-

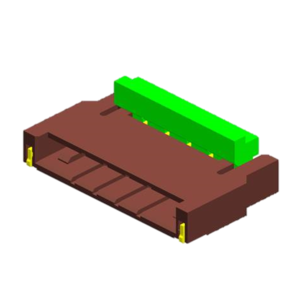

52501-xxxxx-xxx

52501-xxxxx-xxx

Back Flip Easy-on

1.00

SMT

R/A

1.23

With Notch

D/C

0.3±0.03

4

-

52506-xxxxx-xxx

52506-xxxxx-xxx

Back Flip Easy-on

0.50

SMT

R/A

1.00

Normal

D/C

0.3±0.03

4,5,6,8,10,18,20,22,26,30,32,34,36,40,45,50

search value:

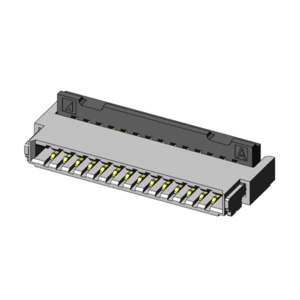

52511-xxxxx-xxx

52511-xxxxx-xxx

Back Flip Easy-on

0.50

SMT

R/A

1.00

Normal

D/C

0.3±0.03

4,14,16,20,24

-

52513-xxxxx-xxx

52513-xxxxx-xxx

Back Flip Easy-on

0.50

SMT

R/A

1.60

With Ear

D/C

0.3±0.03

20

-

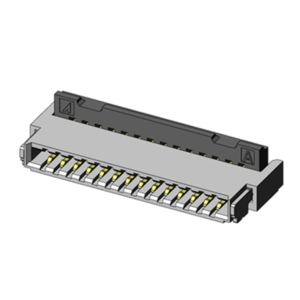

52519-xxxxx-xxx

52519-xxxxx-xxx

Back Flip Easy-on

0.50

SMT

R/A

1.00

With Notch

D/C

0.3±0.03

4,6,8,10,12,24

-

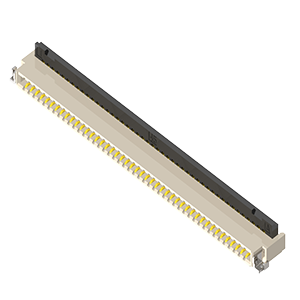

52520-xxxxx-xxx

52520-xxxxx-xxx

Back Flip Easy-on

0.50

SMT

R/A

1.00

Normal

D/C

0.3±0.03

6,8,12,26,18,20,24,26,30,32,34,36,40,45,50

-

52521-xxxxx-xxx

52521-xxxxx-xxx

Back Flip Easy-on

0.80

SMT

R/A

1.60

With Ear

D/C

0.3±0.03

32

-

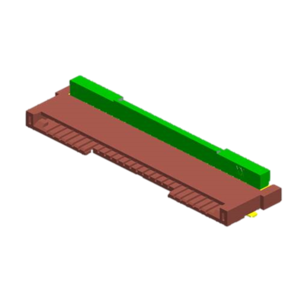

52522-xxxxx-xxx

52522-xxxxx-xxx

Back Flip Easy-on

0.80

SMT

R/A

1.60

With Ear

D/C

0.3±0.03

26,32,34,36

-

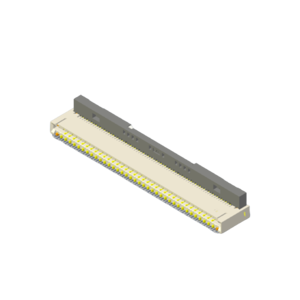

52541-xxxxx-xxx

52541-xxxxx-xxx

Back Flip Easy-on

0.20

SMT

R/A

0.90

With Notch

D/C

0.2±0.02

71

-

52552-XXXXX-XXX

50696-xxxxx-002

Back Flip Easy-on

0.50

SMT

R/A

0.78

-

D/C

0.3±0.03

8

USB 3.2 Gen 2(10Gbps)/Thunderbolt 3 (20Gbps)/USB4 Gen 3
