Features Current: 1.8A Mounting Type: T/H & SMT Operation Direction: R/A & S/T Durability: 5000 cycles
Series
Family
Interface
PCB Mounting
Operation Direction
Center Height (mm)
Product Length (mm)
Product Height (mm)
PCB to Top Height (mm)
55924-xxxxx-xxx
A type
Normal
T/H
R/A
2.90
14.00
5.72
5.76
30127-xxxxx-xxx
Normal Sink
1.09
17.32
3.95

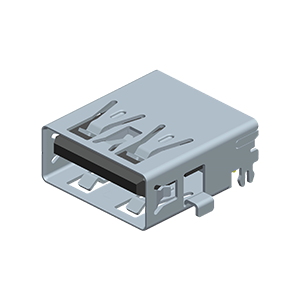

30134-xxxxx-xxx
-1.80
5.12
4.66
30145-0180x-xxx
Dual Stack
-
19.50
15.40
30164-xxxxx-xxx
Vertical
SMT
S/T
N/A
11.60

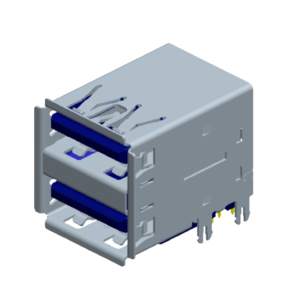

30173-xxxxx-xxx
19.00
14.80
53902-xxxxx-xxx
Reverse Sink
-2.21
16.95
7.07
2.00

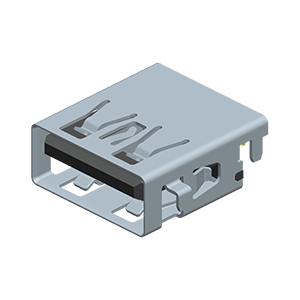

53903-xxxxx-xxx
-0.75
14.20
2.11
53909-xxxxx-xxx
0.40
15.10
3.26
53935-xxxxx-xxx
1.80
13.70

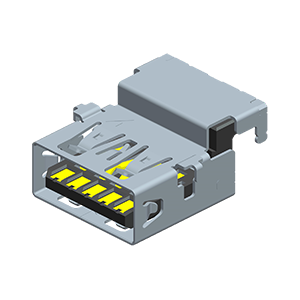

55928-xxxxx-xxx
-3.00
16.20
8.06
2.34

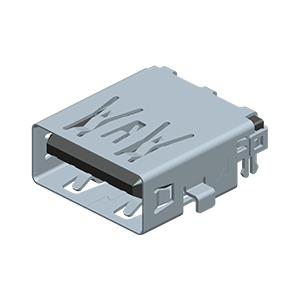

55929-009xx-xxx
-0.80
14.60
2.86

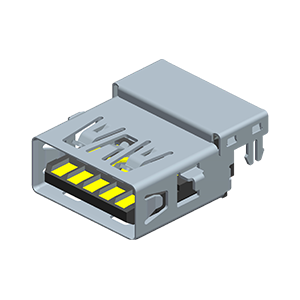

55930-xxxxx-xxx
-1.54
15.05
6.90
2.50

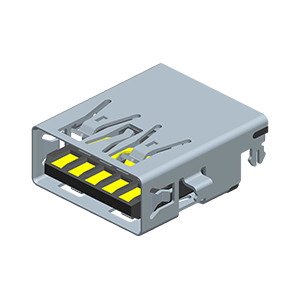

55977-xxxxx-xxx
-0.20
15.00
2.66

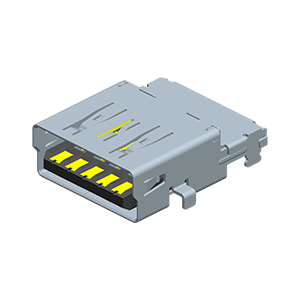

55978-xxxxx-xxx
1.31
3.87
55979-xxxxx-xxx
-1.31
16.60
6.70
2.53

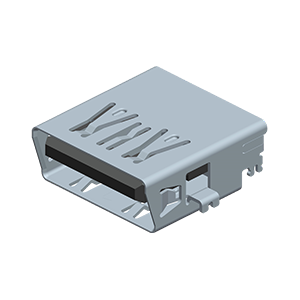

55980-xxxxx-xxx
0.89
13.92
5.42
3.60
55985-xxxxx-xxx
1.60
4.46
55986-xxxxx-xxx
0.11
13.90
2.97
55989-xxxxx-xxx
Upright
8.26
25.70
17.21
