Slim SAS 8i 74 Pos

Cable Length: 1.0m MAX.
Signal Wire Size: 30-32AWG
Impedance: 85/100 Ohms
High Speed Support: SAS4.0(24Gbps)

Advance Search

Series


Family

Connector/Cage

Interface

PCB Mounting

Operation Direction

Center Height (mm)

PCB to Top Height

Current (A)

Rated Voltage (V)

Life Test (cycles)

Product Height (mm)

Product Length (mm)

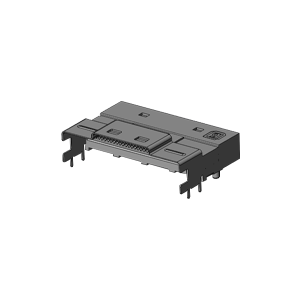

230-10047-XX

230-10047-XX 8i Receptacle

8i (74Pos)

Connector

Single

SMT

R/A

2.62

6.60

0.50

30

50

6.60

15.80

230-10053-01

230-10053-01 8i Receptacle

8i (74Pos)

Connector

Single

SMT

S/T

2.87

13.30

0.50

30

50

14.45

14.45

230-10054-01

230-10054-01 Internal SAS 8i

8i (74Pos)

Connector

Single

SMT

R/A

2.60

6.60

0.50

30

50

6.60

15.80

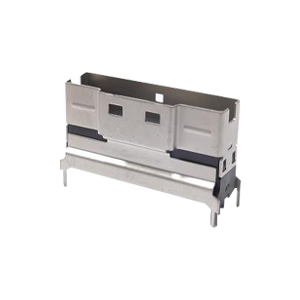

230-10057-XX

230-10057-XX Slim SAS 8i Receptacle

8i (74Pos)

Connector

Single

SMT

S/T

3.67

13.15

0.50

30

50

13.30

13.30

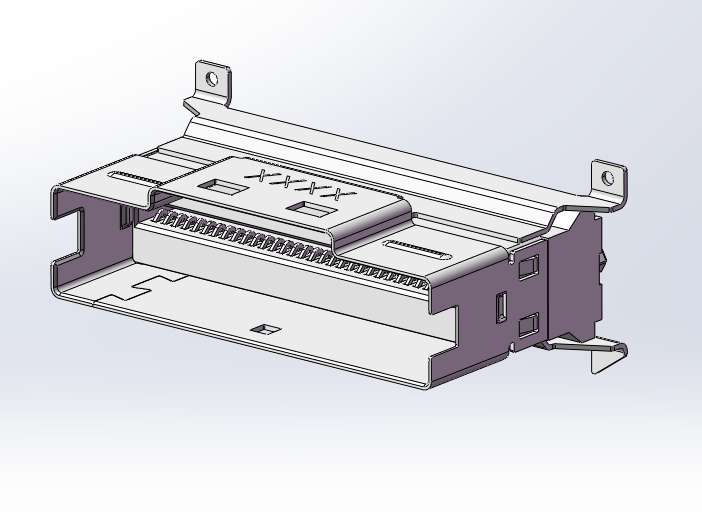

230-10089-01

230-10089-01 Slim SAS 8i

8i (74Pos)

Connector

Single

SMT

S/T

3.67

13.30

0.50

30

50

13.30

13.30
