Lock Type

Features
Pitch: 0.30-1.00mm
Circuits: >=4 pins
Contact Position: D/C, T/C, B/C
Mounting Type: SMT
Operation Direction: R/A, S/T
Product Height: 1.06-6.20mm
Cable Thickness: 0.2 & 0.3mm

Advance Search

Series


Family

Pitch (mm)

PCB Mounting

Operation Direction

Product Height (mm)

CableType

Contact Position

Cable Thickness(mm)

Circuits

High Speed Support

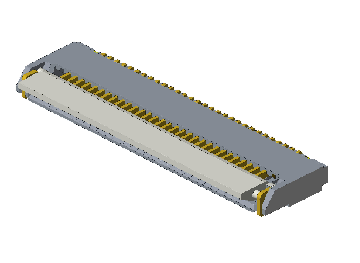

50517-xxxxx-xxx

Lock

0.40

SMT

R/A

1.20

With Notch

B/C

0.2±0.03

6,10,18,21,25,30,40,57,60,65

-

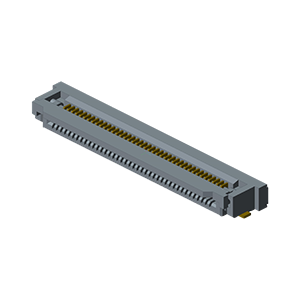

50520-xxxxx-xxx

Lock

0.50

SMT

R/A

2.50

With Ears

B/C

0.3±0.03

5,6,8,10,12,13,15,20,40,45,50,60,64,68,80

-

50523-xxxxx-xxx

Lock

1.00

SMT

R/A

2.00

With Ears

B/C

0.3±0.03

15,20,25,30

-

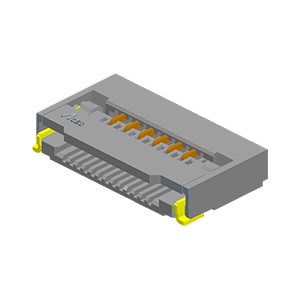

50524-xxxxx-xxx

Lock

1.00

SMT

R/A

2.00

With Ears

B/C

0.3±0.03

4,6,10,25,30,34

-

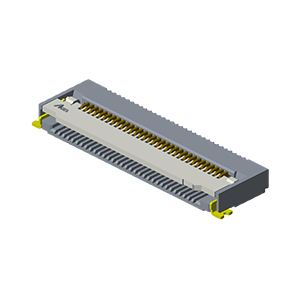

50672-xxxxx-xxx

Lock

0.50

SMT

R/A

2.00

With Ears

B/C

0.3±0.03

32,39

-

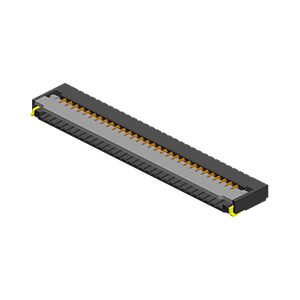

50692-xxxxx-001

Lock

1.00

SMT

R/A

2.00

With Ears

B/C

0.3±0.03

30

-

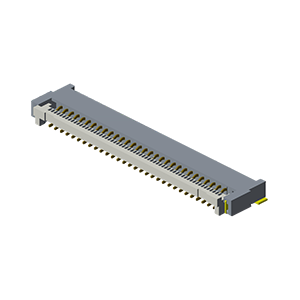

50698-xxxxx-xxx

Lock

1.00

SMT

R/A

2.45

With Ears

D/C

0.3±0.03

4,30, 32

-

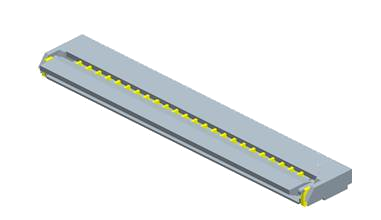

50699-xxxxx-xxx

Lock

0.80

SMT

R/A

1.20

With Notch

B/C

0.2±0.03

24,26,30,32

-

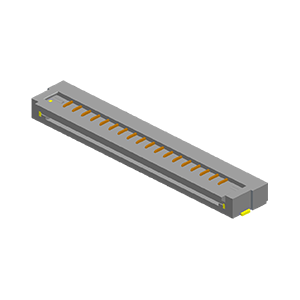

51503-xxxxx-001

Lock

1.00

SMT

R/A

1.80

With Ears

B/C

0.3±0.03

18,26,30,32,34

-

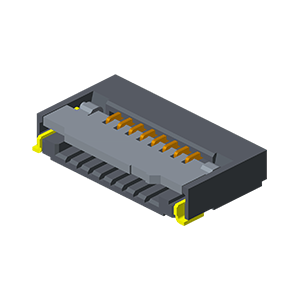

51510-xxxxx-xxx

Lock

0.80

SMT

R/A

2.00

With Ears

B/C

0.3±0.03

30,32,34

-

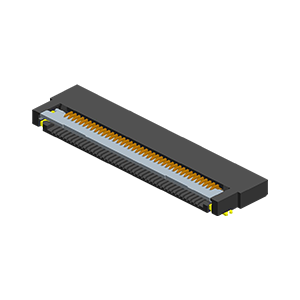

51517-xxxxx-xxx

Lock

0.50

SMT

R/A

1.75

With Ears

B/C

0.3±0.03

40

-

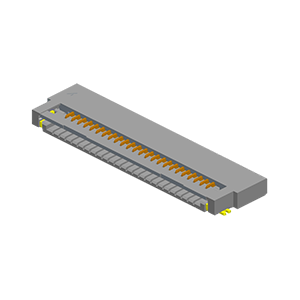

51518-xxxxx-xxx

Lock

0.80

SMT

R/A

1.75

With Ears

B/C

0.3±0.03

24,26,30

-

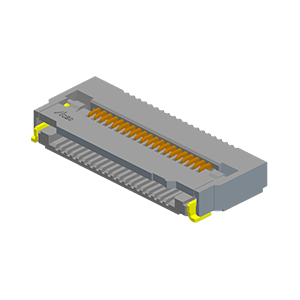

51519-xxxxx-xxx

Lock

0.50

SMT

R/A

2.00

With Ears

B/C

0.3±0.03

16,24,20,28,30,32,40,55

-

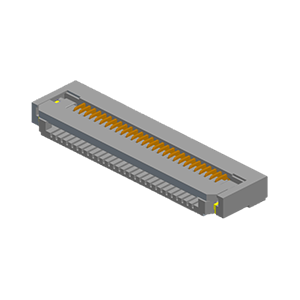

51530-xxxxx-002

Lock

0.50

SMT

R/A

1.80

With Ears

B/C

0.3±0.03

4,6,8,10,12,14,20,24,26,30

-

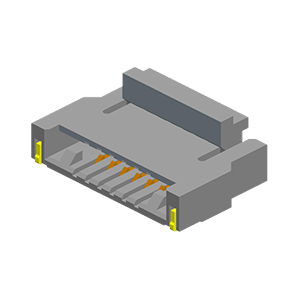

51539-xxxxx-001

Lock

0.50

SMT

R/A

1.20

With Notch

D/C

0.3±0.03

4,8,10,12,14,30

SATA Gen 3(6Gbps)

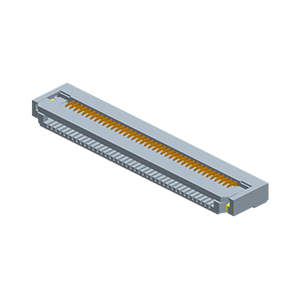

51540-xxxxx-xxx

Lock

0.50

SMT

R/A

1.80

With Ears

B/C

0.3±0.03

10,20,30,34,36,40,42,44,50,56,60

USB3.0 (5Gbps); SATA Gen 3(6Gbps)

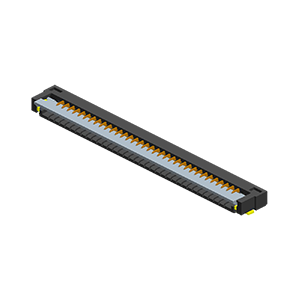

51551-xxxxx-xxx

Lock

0.80

SMT

R/A

1.80

With Ears

B/C

0.3±0.03

34,36,40

-

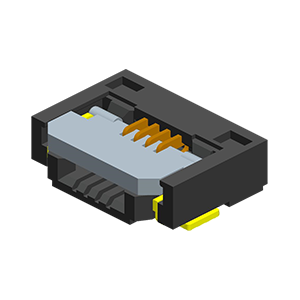

51555-xxxxx-xxx

Lock

0.50

SMT

R/A

1.80

With Ears

B/C

0.3±0.03

50

-

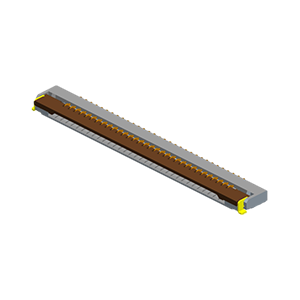

51561-xxxxx-xxx

Lock

0.80

SMT

R/A

1.50

With Ears

B/C

0.3±0.03

32

-

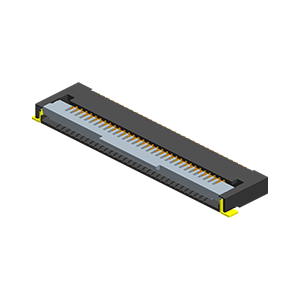

51569-xxxxx-xxx

Lock

0.50

SMT

R/A

1.45

With Notch

B/C

0.3±0.03

32,36

-

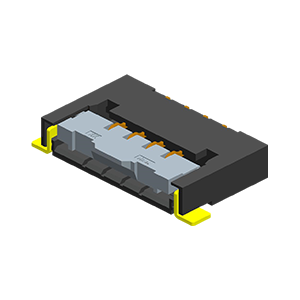

51570-xxxxx-xxx

Lock

1.00

SMT

R/A

1.45

With Notch

B/C

0.3±0.03

4,8,12

-

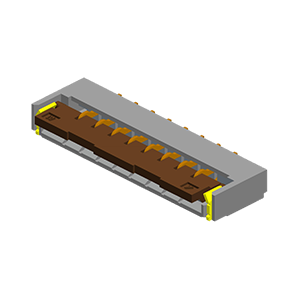

51574-xxxxx-xxx

Lock

1.00

SMT

R/A

1.30

With Notch

B/C

0.3±0.03

8,10

-

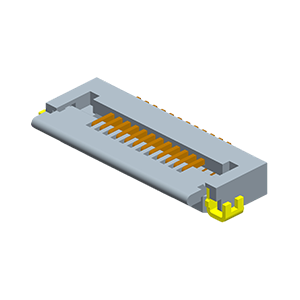

51579-xxxxx-xxx

Lock

0.50

SMT

R/A

1.60

With Notch

B/C

0.3±0.03

4,8,12,16,18,23

-

51580-xxxxx-xxx

Lock

0.50

SMT

R/A

1.30

With Notch

B/C

0.3±0.03

6,8,11,12,32

-

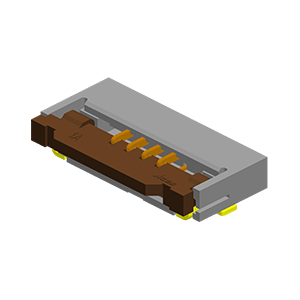

51581-xxxxx-xxx

Lock

1.00

SMT

R/A

2.00

With Notch

B/C

0.3±0.03

4,6

-

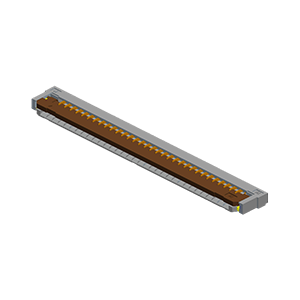

51586-xxxxx-xxx

Lock

1.00

SMT

R/A

1.60

With Ears

B/C

0.3±0.03

28,32

-

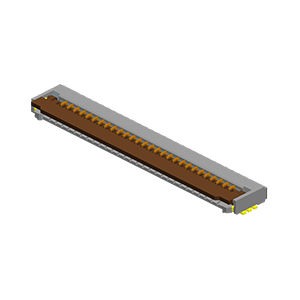

51593-xxxxx-xxx

Lock

1.00

SMT

R/A

2.00

With Ears

B/C

0.3±0.03

28,32

-

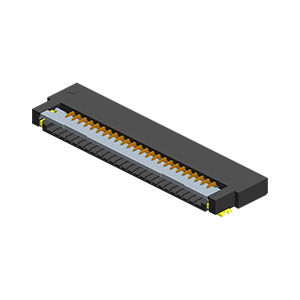

51617-xxxxx-xxx

Lock

0.80

SMT

R/A

1.75

With Ears

B/C

0.3±0.03

26,32

-

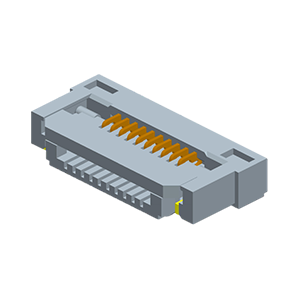

51625-xxxxx-xxx

Lock

0.50

SMT

R/A

1.80

With Ears

B/C

0.3±0.03

6,10,12,14,16,18

-

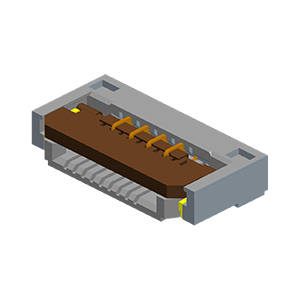

51629-xxxxx-xxx

Front Flip Easy-on

1.00

SMT

R/A

1.80

With Ears

B/C

0.3±0.03

4

-

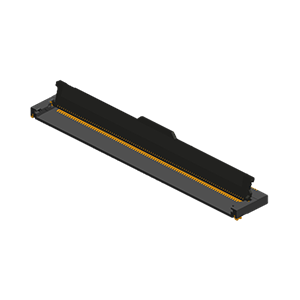

51636-xxxxx-xxx

Lock

0.50

SMT

R/A

2.20

With Notch

B/C

0.32±0.03

96

-

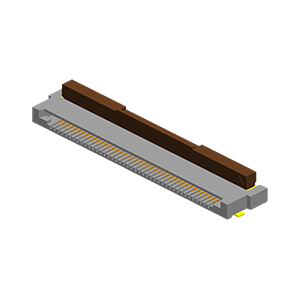

51642-xxxxx-xxx

Lock

0.50

SMT

R/A

1.60

With Ears

D/C

0.3±0.03

42

-

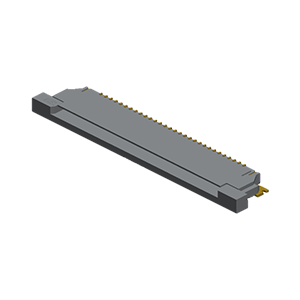

51646-xxxxx-xxx

Lock

0.80

SMT

R/A

2.00

With Ears

T/C

0.3±0.03

30

-

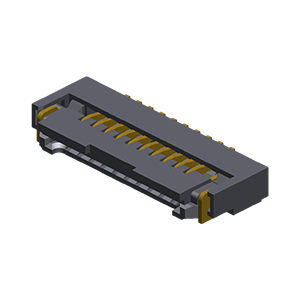

51651-xxxxx-xxx

Lock

0.50

SMT

R/A

1.10

With Ears

B/C

0.3±0.03

10

-

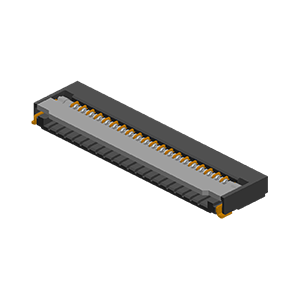

51677-xxxxx-002

Lock

1.00

SMT

R/A

2.00

With Ears

B/C

0.3±0.03

15,20,30

-

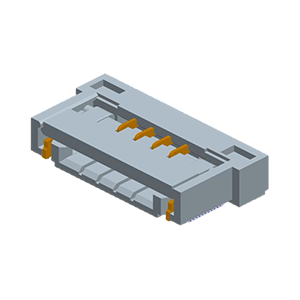

51678-xxxxx-xxx

Lock

1.00

SMT

R/A

1.90

With Ears

B/C

0.3±0.03

4,6,8

-

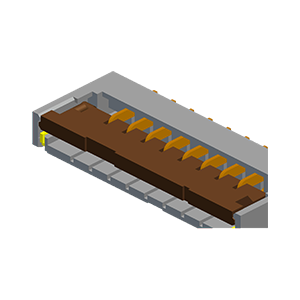

51686-xxxxx-xxx

Lock

1.00

SMT

R/A

1.55

With Notch

B/C

0.3±0.03

8

-

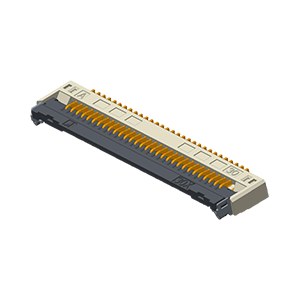

51695-xxxxx-xxx

Lock

0.50

SMT

R/A

1.23

With Ears

B/C

0.3±0.03

14,30,40,50

USB Type C Gen 2(10Gbps)

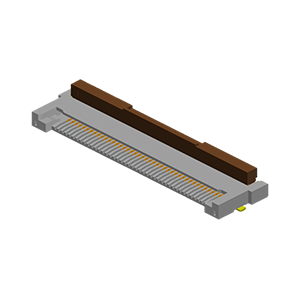

51697-xxxxx-xxx

Lock

0.50

SMT

R/A

1.60

With Ears

D/C

0.3±0.03

42

-

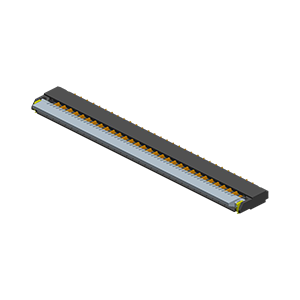

51698-xxxxx-xxx

Lock

0.80

SMT

R/A

1.20

With Notch

B/C

0.2±0.03

30

-

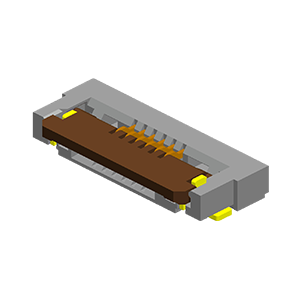

51699-xxxxx-xxx

Lock

0.50

SMT

R/A

1.30

With Notch

B/C

0.3±0.03

6

-

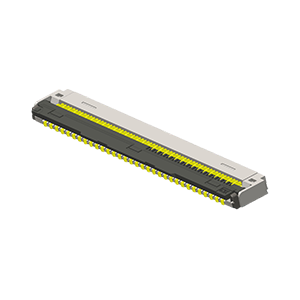

52503-xxxxx-xxx

Lock

0.30

SMT

R/A

1.06

With Ears

B/C

0.2±0.03

23,29,33,49,51

-

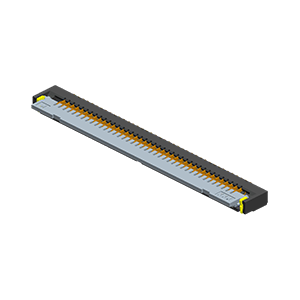

52504-xxxxx-xxx

Lock

0.50

SMT

R/A

1.20

With Ears

B/C

0.3±0.03

40

-
