Gen Z

Features
Gen Z ,SFF-TA-1002
High Speed from 56GT/s  PAM4
Type: Vertical
(with shell /without shell)
straddle mount host board thickness
(1.57mm/1.93mm/2.36mm)

Advance Search

Series


Family

Type

Pitch(mm)

PCB Mounting

Operation Direction

Product Height (mm)

Center Height (mm)

PCB To Top Height (mm)

Contact Position

Key Option

Circuits

HighSpeed Support

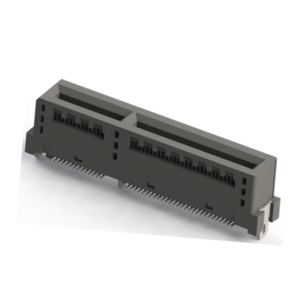

52707-084xx-xxx

52707-084xx-xxx

Gen Z

Vertical NON SHELL

0.60

SMT

D/R S/T

9.00

-

-

-

-

84

PAM4(56GT/S)/GENZ

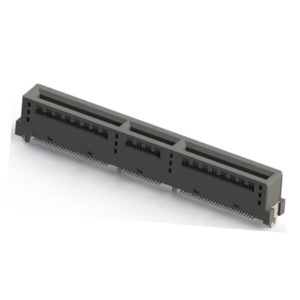

52707-140xx-xxx

52707-140xx-xxx

Gen Z

Vertical NON SHELL

0.60

SMT

D/R S/T

9.00

-

-

-

-

140

PAM4(56GT/S)/GENZ

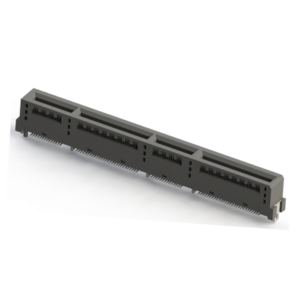

52707-168xx-xxx

52707-168xx-xxx

Gen Z

Vertical NON SHELL

0.60

SMT

D/R S/T

9.00

-

-

-

-

168

PAM4(56GT/S)/GENZ

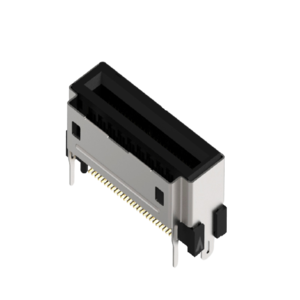

52708-056XX-XXX

52708-056XX-XXX

Gen Z

Vertical SHELL

0.60

SMT

D/R S/T

9.00

-

-

-

-

56

PAM4(56GT/S)/GENZ

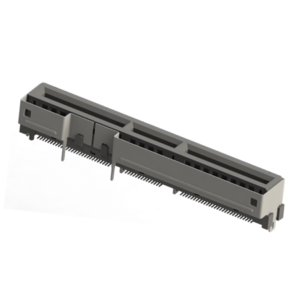

52708-140xx-xxx

52708-140xx-xxx

Gen Z

Vertical SHELL

0.60

SMT

D/R S/T

9.00

-

-

-

-

140

PAM4(56GT/S)/GENZ

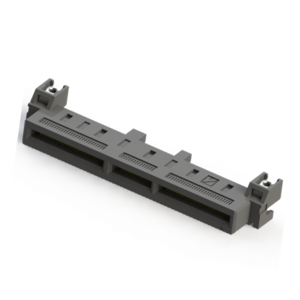

52725-140xx-xxx

52725-140xx-xxx

Gen Z

Straddle host board thickness (1.57mm)

0.60

-

D/R S/T

8.60

-

-

-

-

140

PAM4(56GT/S)/GENZ

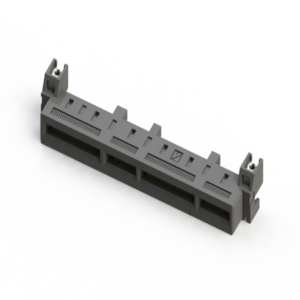

52725-168xx-xxx

52725-168xx-xxx

Gen Z

Straddle host board thickness (1.57mm)

0.60

-

D/R S/T

8.60

-

-

-

-

168

PAM4(56GT/S)/GENZ

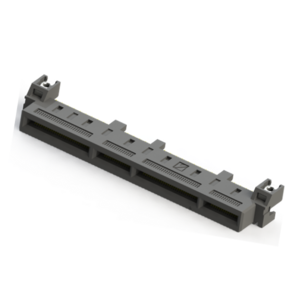

52726-168xx-xxx

52726-168xx-xxx

Gen Z

Straddle host board thickness (1.93mm)

0.60

-

D/R S/T

8.60

-

-

-

-

168

PAM4(56GT/S)/GENZ

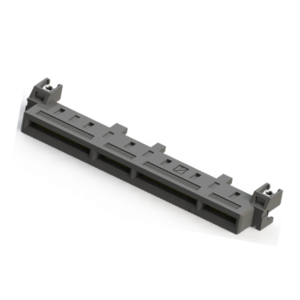

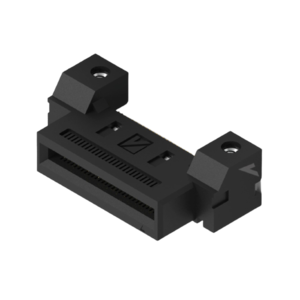

52727-056xx-xxx

52727-056xx-xxx

Gen Z

Straddle host board thickness (2.36mm)

0.60

-

D/R S/T

8.60

-

-

-

-

56

PAM4(56GT/S)/GENZ

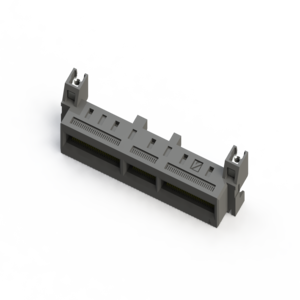

52727-140xx-xxx

52727-140xx-xxx

Gen Z

Straddle host board thickness (2.36mm)

0.60

-

D/R S/T

8.60

-

-

-

-

140

PAM4(56GT/S)/GENZ

52727-168xx-xxx

52727-168xx-xxx

Gen Z

Straddle host board thickness (2.36mm)

0.60

-

D/R S/T

8.60

-

-

-

-

168

PAM4(56GT/S)/GENZ
