D Type

Features
Mounting Type: T/H & SMT
Operation Direction: R/A
Durability: 5000 cycles

Advance Search

Series


Family

Interface

PCB Mounting

Operation Direction

Product Height (mm)

Product Length (mm)

Center Height (mm)

PCB to Top Height (mm)

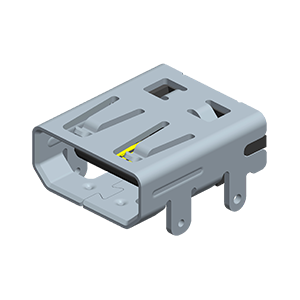

30301-xxxxx-xxx

D type

Standard

SMT

R/A

3.00

7.50

1.50

3.00

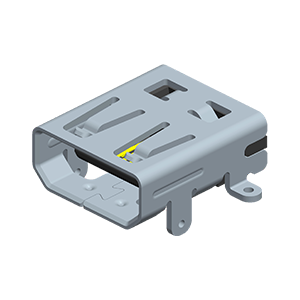

59547-xxxxx-xxx

D type

Standard

SMT

R/A

3.00

7.50

1.50

3.00

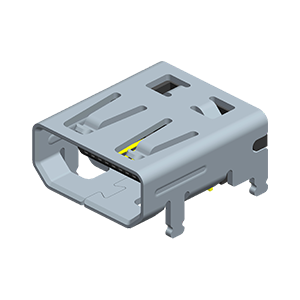

59548-019xx-xxx

D type

Standard

SMT + T/H

R/A

2.90

7.70

1.50

2.90

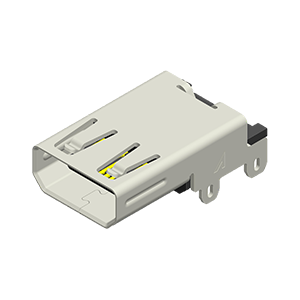

59557-019xx-xxx

D type

Standard

SMT + T/H

R/A

3.35

11.30

1.95

3.35

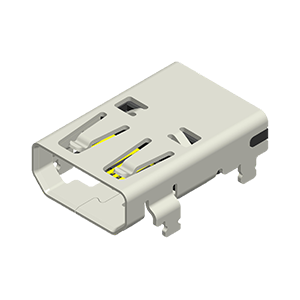

59558-019xx-xxx

D type

Standard Sink

SMT + T/H

R/A

2.80

9.80

0.95

2.35

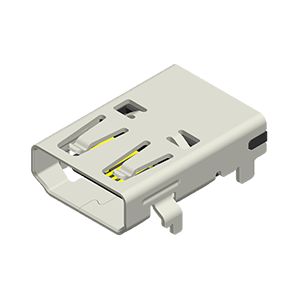

59559-019xx-xxx

D type

Standard Sink

SMT + T/H

R/A

2.90

9.40

1.07

2.47

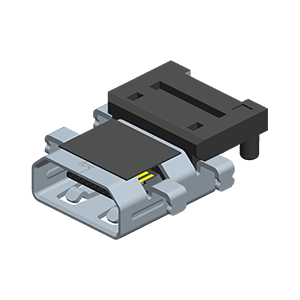

59563-xxxxx-xxx

D type

Reverse Sink

SMT + T/H

R/A

3.87

10.50

-0.67

1.75
