0.4mm Pitch

Features
Pitch: 0.40-1.25mm
Circuits: >=10 pins
Contact Position: D/R
Mounting Type: SMT
Operation Direction: S/T
Mating Height: 0.8-17.9mm

Advance Search

Series


Type

Pitch(mm)

PCB Mounting

Operation Direction

Product Height (mm)

Mating Height (mm)

Mates With

Circuits

High Speed Support

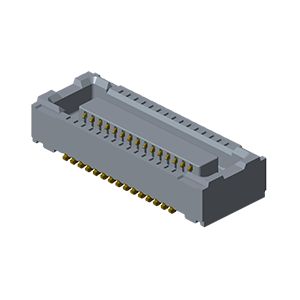

50009-xxxxx-xxx

Receptacle

0.40

SMT

D/R S/T

1.92

2.00

50185

10,14,20,24,26,30,40,50,60,90

-

50010-xxxxx-xxx

Receptacle

0.40

SMT

D/R S/T

2.07

2.20

50185

10,24

-

50177-xxxxx-xxx

Plug

0.40

SMT

D/R S/T

2.29

3.50

50180

30,60

-

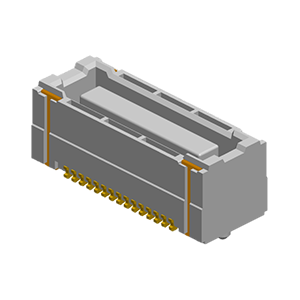

50180-xxxxx-xxx

Receptacle

0.40

SMT

D/R S/T

3.20

3.50

50177

30,60

-

50185-xxxxx-xxx

Plug

0.40

SMT

D/R S/T

1.14

2.00

50009

10,12,16,20,24,26,30,34,40,50,70,80

-

50185-xxxxx-xxx

Plug

0.40

SMT

D/R S/T

1.14

1.50

51049

10,12,16,20,24,26,30,34,40,50,70,80

USB3.0 (5Gbps)
SATA Gen3 (6Gbps)

50185-xxxxx-xxx

Plug

0.40

SMT

D/R S/T

1.14

2.20

50010

10,12,16,20,24,26,30,34,40,50,70,80

-

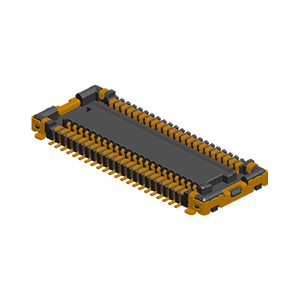

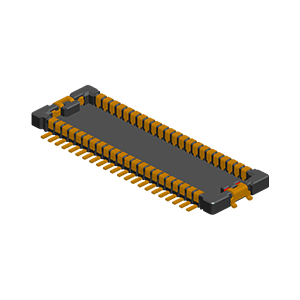

51015-xxxxx-xxx

Plug

0.40

SMT

D/R S/T

0.63

0.90

51016

40,44,50,60,70

-

51016-xxxxx-xxx

Receptacle

0.40

SMT

D/R S/T

0.87

0.90

51015

40,44,50,60,70

-

51023-xxxxx-xxx

Plug

0.40

SMT

D/R S/T

0.83

1.00

51024

20,24,30,40

USB3.0 (5Gbps)
SATA Gen3 (6Gbps)

51024-xxxxx-xxx

Receptacle

0.40

SMT

D/R S/T

0.97

1.00

51023

20,24,30,40

USB3.0 (5Gbps)
SATA Gen3 (6Gbps)

51049-xxxxx-xxx

Receptacle

0.40

SMT

D/R S/T

1.34

1.50

50185

10,12,16,20,24,26,30,34,40,50,60,70,80

USB3.0 (5Gbps)
SATA Gen3 (6Gbps)

51150-xxxxx-xxx

Plug

0.40

SMT

D/R S/T

1.14

1.50

51151

30.00

-

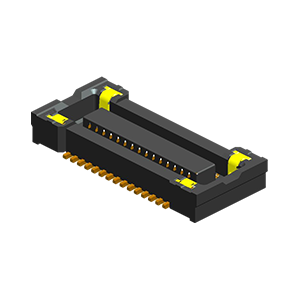

51151-xxxxx-xxx

Receptacle

0.40

SMT

D/R S/T

1.34

1.50

51150

30.00

-

51162-xxxxx-xxx

Plug

0.40

SMT

D/R S/T

1.45

1.50

51163

70.00

PCIe Gen 3(8Gbps)

51163-xxxxx-xxx

Receptacle

0.40

SMT

D/R S/T

1.14

1.50

51162

24,70

PCIe Gen 3(8Gbps)

51165-xxxxx-xxx

Plug

0.40

SMT

D/R S/T

1.14

1.50

51166

60.00

USB 3.1 Gen 2 (10Gbps)

51166-xxxxx-xxx

Receptacle

0.40

SMT

D/R S/T

1.42

1.50

51165

60.00

USB 3.1 Gen 2 (10Gbps)

51167-xxxxx-xxx

Plug

0.40

SMT

D/R S/T

0.65

0.80

51168

10,12,14,24,30,40

USB3.0 (5Gbps)
SATA Gen3 (6Gbps)

51168-xxxxx-xxx

Receptacle

0.40

SMT

D/R S/T

0.77

0.80

51167

10,12,14,24,30,40

USB3.0 (5Gbps)
SATA Gen3 (6Gbps)
