Electrical
Voltage Rating: 125V AC.
Current Rating: 1.5A Max.
Contact Resistance: 60mΩ .
Dielectric Withstanding Voltage:1000 V AC MIN.
INSULATION Resistance:500MΩ min.
Operating Temp:0℃ ~ +70℃
Specification(Abbreviation)

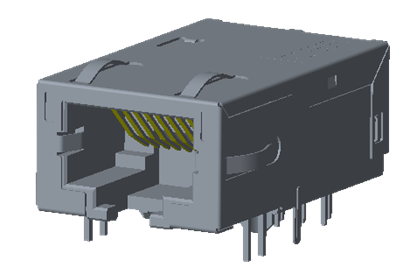

Family: RJ+Transformer
Type: Standard
PCB Mounting: DIP
Operation Direction: Right angle
Product Width (mm): 17.53
Product Length(Depth)(mm): 28.58
Product Height(mm): 11.38
PCB to Top Height (mm): 11.38
Tab(Up/Down): Tab Down
LED (Yes/No): Yes
Ports: 1 x 1
Position/Contact: 8P8C
Transformer Type: 10G
HSF: HF
