Electrical
Rating: 30V AC
Current: 1.5A
Withstanding Voltage: 500V AC
Contact Resistance: 30mΩ. MAX.
Insulation Resistance: 1000 MΩ. MIN.
Operating temperature: -40°C ~ +85°C;
Specification(Abbreviation)

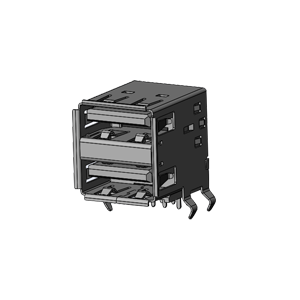

Family: Type A
Interface: Dual Stack
PCB Mounting: T/H
Operation Direction: R/A
Center Height (mm): 7.99
Product Length (mm): 17
Product Height (mm): 15.6
PCB to Top Height(mm): 15.4
