Card Edge

Features
PCIe Gen3 8G
PCIe Gen4 16G
PCIe Gen5 32G

Advance Search

Series


Family

Type

Pitch(mm)

PCB Mounting

Operation Direction

Product Height (mm)

Center Height (mm)

PCB To Top Height (mm)

Contact Position

Key Option

Circuits

HighSpeed Support

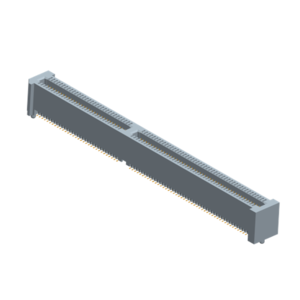

50722-xxxxx-xxx

50722-xxxxx-xxx

Card Edge

-

0.80

SMT

D/R S/T

8.00

-

-

-

-

40,50,60,80,100,110,120,160,200

PCIe Gen 3(8GT/s)

50765-xxxxx-xxx

50765-xxxxx-xxx

Card Edge

-

1.00

SMT

D/R S/T

8.85

-

-

-

-

164

PCIe Gen 3(8GT/s)

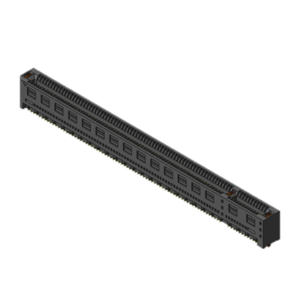

52701-xxxxx-xxx

52701-xxxxx-xxx

Card Edge

-

1.00

SMT

D/R S/T

8.85

-

-

-

-

164

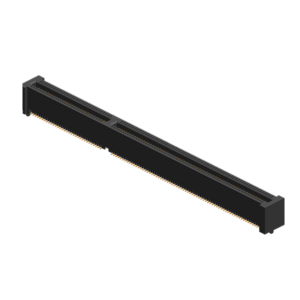

PCIe Gen 4(16GT/s)

52702-xxxxx-xxx

52702-xxxxx-xxx

Card Edge

-

0.80

SMT

D/R S/T

7.98

-

-

-

-

200

PCIe Gen 4(16GT/s)

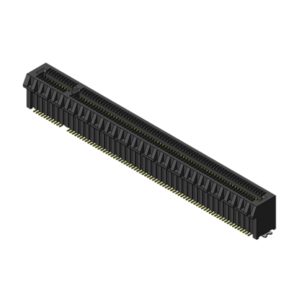

52704-xxxxx-xxx

52704-xxxxx-xxx

Card Edge

-

1.00

SMT

D/R S/T

11.10

-

-

-

-

98,164

PCIe Gen 4(16GT/s)

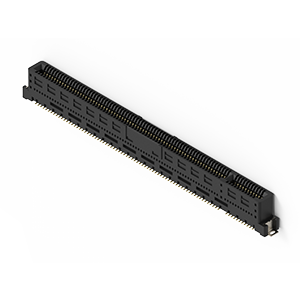

52705-xxxxx-xxx

52705-xxxxx-xxx

Card Edge

-

1.00

SMT

D/R S/T

10.45

-

-

-

-

164

PCIe Gen 4(16GT/s)

52706-xxxxx-xxx

52706-xxxxx-xxx

Card Edge

Standard

0.80

SMT

D/R R/A

5.20

-

-

-

-

40

-

52710-xxxxx-xxxxx

52710-xxxxx-xxxxx

Card Edge

-

1.00

SMT

D/R S/T

11.00

-

-

-

-

164

PCIe Gen 5(32GT/s)

52712-xxxxx-xxxxx

52712-xxxxx-xxxxx

Card Edge

Slim

1.00

SMT

D/R, S/T

10.45

-

-

-

-

164

PCIe Gen 5(32GT/s)

52717-xxxxx-xxx

52717-xxxxx-xxx

Card Edge

Latch

1.00

SMT

D/R S/T

14.65

-

-

-

-

164

PCIe Gen 5(32GT/s)

Abbreviation
