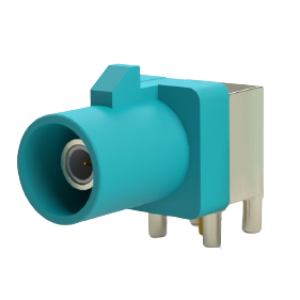

92801-B1XX2-CA1

Electrical

Impedance: 50 Ω
Frequency: 0 to 4 GHz
Working Voltage: 335 Vrms MAX.
Dielectric Withstanding Voltage: 750V AC In 1-MIN.
Contact Resistace: 5 mΩ MAX.
Inaulator Resistace: 1000 MΩ MIN.
Insulator Retention Force: 10 Lb MIN.
Mating: Snap-on Coupling Mechanism
Connector Durability: 25 matings MIN.



Specification(Abbreviation)

Type: Fakra Conn.

Board / Cable Side: Board Side

Male / Female: Female

Waterproof: No
