54983-xxxxx-xxx

Electrical

Voltage: 250V AC(Per Pin)
Current: 3A (Per Pin)
Contact Resistance: 50mΩ max.
Dielectric Withstanding Voltage: 1000V AC/rms
Insulation Resistance: 1000 MΩ min.
Operating Temp : -40℃~ +85℃

Reference

Battery Height:3.0mm
Battery Diameter:24.5mm



Specification(Abbreviation)

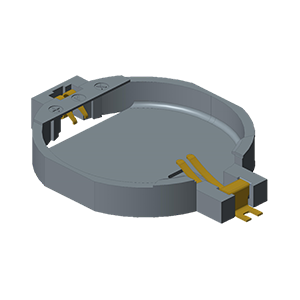

Family: Battery Holder

PCB Mounting: SMT

Above PCB Height (mm): 4.30

Current(A): 3.0

Screw (Yes/No): No

Battery Code: CR2430（ø24.5*3.0mm）

Circuits: 2
