54967-xxxxx-xxx

Electrical

Voltage: 30 Volts AC DC (per pin)
Current: 5.0 Amperes AC DC (per pin)
Contact Resistance: 20 mΩ max.
Dielectric Withstanding Voltage: 500V AC Min.
Insulation Resistance: 500MΩ min.
Operating Temp. : -40℃ ~ +85℃



Specification(Abbreviation)

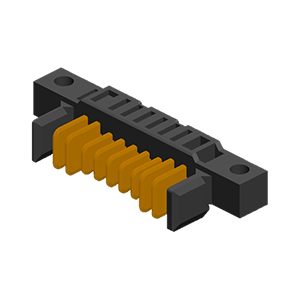

Family: Blade Male

Pitch(mm): 2.00

PCB Mounting: T/H

Operation Direction: R/A

Above PCB Height (mm): 5.20

Current(A): 5.0

Screw (Yes/No): Yes

Circuits: 9
