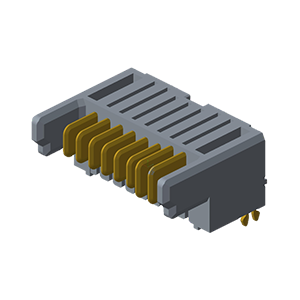

53046-xxxxx-xxx

Electrical

1 .Working Voltage Less than 36 Volts AC (per pin)
2 .Voltage: 30 Volts AC (per pin)
3 .Current: 7.0 Amperes (per pin)
4. Operating Temperature : -40℃ to +85℃
5.Contact Resistance:
30 m Max.(initial)per contact
15 m Max.(after test) Change allowed
6.Insulation Resistance 500 M Min.
7.Dielectric Withstanding Voltage:300V AC Min.



Specification(Abbreviation)

Family: Blade Male

Pitch(mm): 2.00

PCB Mounting: T/H

Operation Direction: R/A

Above PCB Height (mm): 9.70

Current(A): 7.0

Screw (Yes/No): No

Circuits: 8
