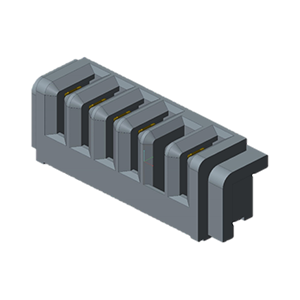

53036-xxxxx-001

Electrical

Voltage: 30V AC(Per Pin)
Current: 7.0A (Per Pin)
Contact Resistance: 20mΩ max.
Dielectric Withstanding Voltage: 300V AC/rms
Insulation Resistance: 500 MΩ min.
Operating Temp : -40℃~ +85℃

Reference Information
Mated P/N: 53035



Specification(Abbreviation)

Family: Blade Female

Pitch(mm): 2.50

PCB Mounting: T/H

Operation Direction: S/T

Above PCB Height (mm): 6.70

Mates With: 53035

Current(A): 7.0

Screw (Yes/No): No

Circuits: 5
