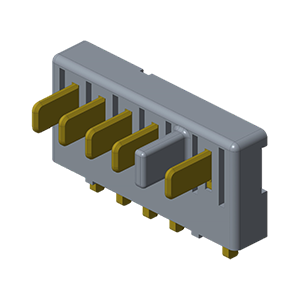

53028-xxxxx-xxx

Electrical

Voltage: 30 Volts AC (per pin)
Current: 5.0 Amperes (per pin)
Contact Resistance:20 m Ω Max.(initial)per contact
Dielectric Withstanding Voltage:500 V AC Min.
Insulation Resistance:500 M Ω Min.
Operating Temperature : -40℃ to +85℃



Specification(Abbreviation)

Family: Blade Male

Pitch(mm): 2.50

PCB Mounting: T/H

Operation Direction: R/A

Above PCB Height (mm): 8.40

Current(A): 5.0

Screw (Yes/No): No

Circuits: 5
