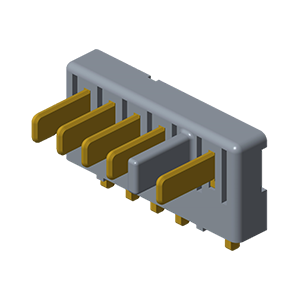

53021-xxxxx-xxx

Electrical

1 .Voltage: 30 V AC (per pin)
2. Current: 5.0 Amperes (per pin)
3. Operating Temperature : -40℃ to +85℃
4.Contact Resistance: 40 m Max.
5.Insulation Resistance: 500 M Min.
6.Dielectric Withstanding Voltage:500 V AC Min.



Specification(Abbreviation)

Family: Blade Male

Pitch(mm): 2.50

PCB Mounting: T/H

Operation Direction: R/A

Above PCB Height (mm): 8.20

Current(A): 5.0

Screw (Yes/No): No

Circuits: 5
