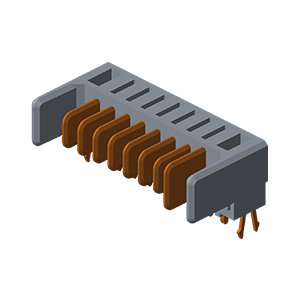

53015-008xx-xxx

Electrical

Voltage: 30 Volts AC (per pin)
Current: 7 Amperes (per pin)
Contact Resistance: Initial: 20 m Ω Max. After test: 40 m Ω Max.
Dielectric Withstanding Voltage: 500 VAC Min.
Insulation Resistance: 500MΩ min.
Operating Temp. : -40℃ ~ +85℃



Specification(Abbreviation)

Family: Blade Male

Pitch(mm): 2.00

PCB Mounting: T/H

Operation Direction: R/A

Above PCB Height (mm): 7.05

Current(A): 7.0

Screw (Yes/No): No

Circuits: 8
