53011-002xx-xxx

Electrical

1. Working Voltage Less than 36 Volts AC (per pin)
2. Voltage: 250 V AC (per pin)
3. Current: 3.0 Amperes (per pin)
4. Operating Temperature : -40℃ to +85℃
5.Contact Resistance:50 m Max.(initial)per
contact R △ 50 m Max.
6.Insulation Resistance: 1000 M Min.
7.Dielectric Withstanding Voltage:1000 V AC Min.



Specification(Abbreviation)

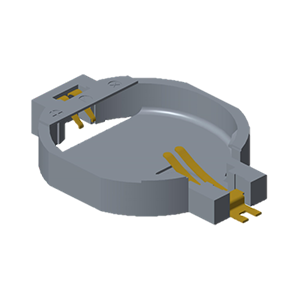

Family: Battery Holder

PCB Mounting: SMT

Above PCB Height (mm): 4.20

Current(A): 3.0

Screw (Yes/No): No

Battery Code: CR2032（ø20.0*3.2mm）

Circuits: 2
