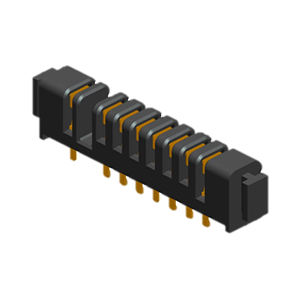

51973-008xx-xxx

Electrical

Voltage: 30 Volts AC(per pin)
Current: 10.0 Amperse (2 side contact only)
6.0 Amperse (other contact)
Contact Resistance: 30 m Ω Max.(initial); 20 m Ω Max.(After)
Dielectric Withstanding Voltage: 500 V DC
Insulation Resistance: 1000MΩ min.
Operating Temp. : -20℃ ~ +80℃



Specification(Abbreviation)

Family: Blade Female

Pitch(mm): 2.50

PCB Mounting: T/H

Operation Direction: S/T

Above PCB Height (mm): 7.25

Mates With: 51998, 50966, 50964

Current(A): 2P=10 6P=6.0

Screw (Yes/No): No

Circuits: 8
