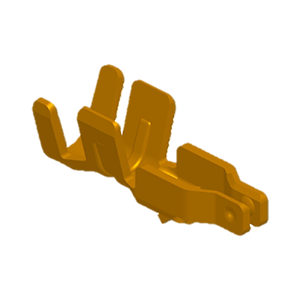

51492-Txxx-xxx

Electrical

Voltage: 36 Volts AC (per pin)
Current: AWG#26/4.0A
Contact Resistance:40mΩ max.
Dielectric Withstanding Voltage: 500 VAC Min.
Insulation Resistance: 500MΩ min.
Operating Temp. : -40℃ ~ +85℃



Specification(Abbreviation)

Family: Terminal

Pitch (mm): 1.2

Product Height (mm): 0

AWG#: 26

Current (A): AWG#26/3.0A

Mates With: Housing: 51492-xxxH; Wafer: 51491

Outer Lock: No

Circuits: 2,5,6
