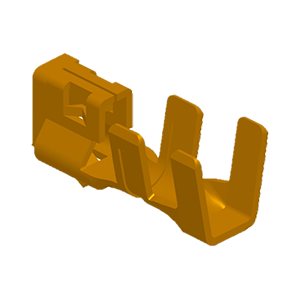

51367-Txxx-xxx

Electrical

Voltage: 125 Volts AC (per pin)
Current: 2.0 A
Contact Resistance: 10 mΩ max.
Dielectric Withstanding Voltage: 500 VAC Min.
Insulation Resistance: 1000MΩ min.
Operating Temp. : -40℃ ~ +105℃



Specification(Abbreviation)

Family: Terminal

Pitch (mm): 2

Product Height (mm): 0

AWG#: 22~26

Mates With: 51367-xxxH

Outer Lock: No
