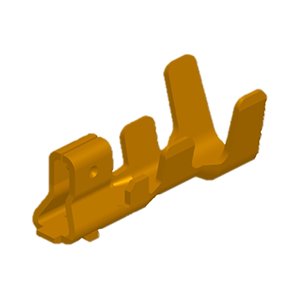

51339-Txxx-xxx

Electrical

Voltage: 50 Volts AC (per pin)
Current: AWG#24/5.0 A
AWG#26/5.0A
AWG#28/3.0A
AWG#30/2.5A
Contact Resistance: 40 mΩ max.
Dielectric Withstanding Voltage: 500 VAC Min.
Insulation Resistance: 500MΩ min.
Operating Temp. : -25℃ ~ +85℃



Specification(Abbreviation)

Family: Terminal

Pitch (mm): 1.5

Product Height (mm): 0

AWG#: 24~30

Current (A): AWG#24/5.0A, AWG#26/5.0A, AWG#28/3.0A, AWG#30/2.5A

Mates With: 51341, 50294-xxxH

Outer Lock: No
