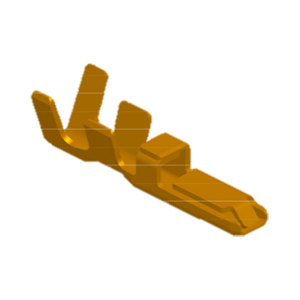

51324-Txxx-xxx

Electrical

Voltage: 50V AC/DC (r.m.s)
Current: AWG#26/1.5A
AWG#28/1.5A
AWG#30/1.0A
Contact Resistance: 20mΩ max.
Dielectric Withstanding Voltage: 500V AC/rms
Insulation Resistance: 100 MΩ min.
Operating Temp. : -40℃ ~ +85℃



Specification(Abbreviation)

Family: Terminal

Pitch (mm): 1.25

Product Height (mm): 0

AWG#: 26~28

Current (A): AWG#26/1.5A, AWG#28/1.5A

Mates With: Housing: 51324-xxxH; Wafer: 51323

Outer Lock: No
