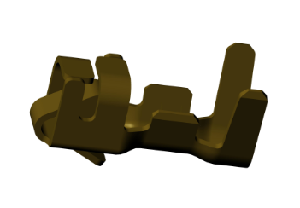

51284-Txxx-xxx

Electrical

Voltage: 250V AC(Per Pin)
Current: AWG#22/3A
Contact Resistance: 20mΩ max.
Dielectric Withstanding Voltage: 300V AC/rms
Insulation Resistance: 500 MΩ min.
Operating Temp : -40℃~ +85℃



Specification(Abbreviation)

Family: Terminal

Pitch (mm): 2.5

Product Height (mm): 0

AWG#: 22

Current (A): AWG#22/3.0A

Mates With: Housing: 51284-xxxH; Wafer: 51283

Outer Lock: No

Circuits: 10
