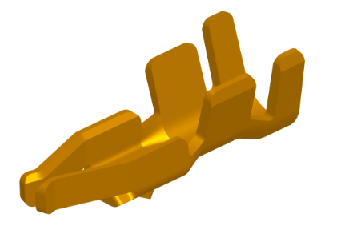

51270-Txxx-xxx

Electrical

Voltage: 50 Volts AC (per pin)
Current: AWG#30/2.0 A
AWG#28/3.0 A
Contact Resistance: 20 mΩ max.
Dielectric Withstanding Voltage 500 VAC Min.
Insulation Resistance: 100 MΩ min.
Operating Temp. : -25℃ ~ +85℃



Specification(Abbreviation)

Family: Terminal

Pitch (mm): 1.2

Product Height (mm): 0

AWG#: 28~30

Current (A): AWG#28/3.0A, AWG#30/2.0A

Mates With: Housing: 51270-xxxHxxx-002; Wafer: 51269

Outer Lock: No
