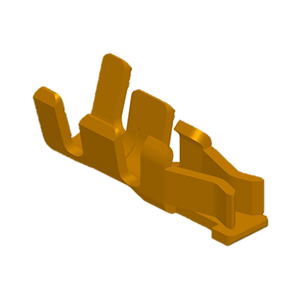

51222-Txxx-001

Electrical

Voltage: 50 Volts DC (per pin)
Current: AWG#24/4.0 A
AWG#26/3.0 A
AWG#28-3.0 A
AWG#30/3.0 A
Contact Resistance: 60 mΩ max.
Dielectric Withstanding Voltage: 500 V AC Min.
Insulation Resistance: 500MΩ min.
Operating Temp. : -40℃ ~ +85℃



Specification(Abbreviation)

Family: Terminal

Pitch (mm): 1.5

Product Height (mm): 0

AWG#: 24~30

Current (A): AWG#24/4.0A, AWG#26/3.0A, AWG#28/3.0A, AWG#30/3.0A

Mates With: Housing: 51222-xxxH; Wafer: 51221

Outer Lock: No
