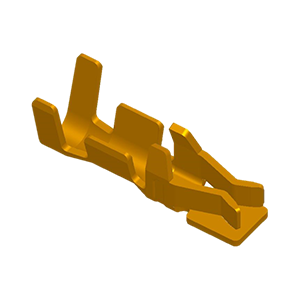

51210-Txxx-xxx

Electrical

Voltage: 30V AC
Current: AWG#28/1.0A
AWG#26/1.0A
AWG#24/2.0A
AWG#22/3.0A
Contact Resistance: 30mΩ max.
Dielectric Withstanding Voltage: 500V AC/rms
Insulation Resistance: 100 MΩ min.
Operating Temp. : -40℃ ~ +85℃



Specification(Abbreviation)

Family: Terminal

Pitch (mm): 2

Product Height (mm): 0

AWG#: 24~28

Current (A): AWG#24/2.0A, AWG#26/1.0A, AWG#28/1.0A

Mates With: Housing: 51210-xxxH; Wafer: 51209

Outer Lock: No
