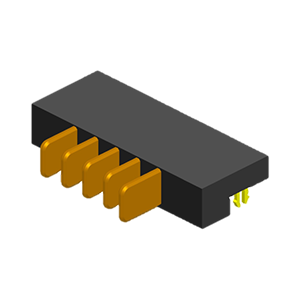

50989-xxxxx-xxx

Electrical

Voltage: 30 Volts AC (per pin)
Current:5.0 A (per pin)
Contact Resistance: 40 mΩ max.
Dielectric Withstanding Voltage: 500 V AC Min.
Insulation Resistance: 500MΩ min.
Operating Temp. : -40℃ ~ +85℃



Specification(Abbreviation)

Family: Blade Male

Pitch(mm): 2.00

PCB Mounting: T/H

Operation Direction: R/A Sink

Above PCB Height (mm): 1.70

Mates With: 50967

Current(A): 5.0

Screw (Yes/No): No

Circuits: 5
