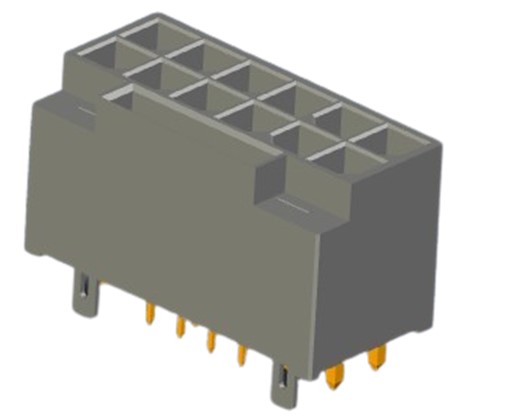

Micro Lock

Features
Pitch: 3.0 mm
Mounting Type: SMT
Operation Direction: R/A
Product Height: 5.57mm
Row: Single
Circuits: 2~24 pins
Working Voltage: 36 Volts AC/Per Pin
AWG: 20~30
Current: 7A Max

Advance Search

Series


Type

Pitch(mm)

PCB Mounting

Operation Direction

Product Height (mm)

AWG#

Current (A)

Mates With

Circuits

52995-xxxxx-xxx

52995-xxxxx-xxx

Header

3.0 (Micro Luck)

T/H

D/R R/A

8.80

16~30

9.00

Housing:57960-xxxH;
Terminal:57958-T01L

6,12,18,20

52996-xxxxx-xxx

52996-xxxxx-xxx

Header

3.0 (Micro Luck)

SMT

S/R S/T

9.90

20~30

7.00

Housing:57958-xxxH;
Terminal:57958-T

2,4

56965-xxxxx-xxxx

56965-xxxxx-xxxx

Header

3.0 (Micro Luck)

T/H

D/R R/A

8.80

16~20

12.50

Housing:57960-xxxHxxx-002
Terminal: 57980-T57L-001

6,12

56966-xxxxx-xxx

56966-xxxxx-xxx

Header

3.0 (Micro Luck)

T/H

D/R S/T

9.91

16~20

12.50

Housing:57960-xxxHxxx-002;
Terminal:57980-T57L-001

4,6,8,10,12,14,16,20,24

56967-xxxxx-xxx

56967-xxxxx-xxx

Header

3.0 (Micro Luck)

T/H

D/R S/T

9.91

16~20

12.50

Housing:57960-xxxHxxx-002;
Terminal:57980-T57L-001

-

56968-xxxxx-xxx

56968-xxxxx-xxx

Header

3.0 (Micro Luck)

SMT

S/R R/A

4.37

20~30

7.00

Housing:56969-xxxH;
Terminal:57958-T

6

56969-xxxHxxx-xxx

56969-xxxHxxx-xxx

Housing

3.0 (Micro Luck)

-

S/R

4.16

20~30

7.00

Housing:56969-xxxH;
Terminal:57958-T

6

57923-xxxxx-xxx

57923-xxxxx-xxx

Header

3.0 (Micro Luck)

SMT

S/R S/T

9.90

20~30

7.00

Housing:57958-xxxH;
Terminal:57958-T

2

57949-xxxxx-xxx

57949-xxxxx-xxx

Header

3.0 (Micro Luck)

T/H

S/R S/T

9.90

20~30

7.00

Housing:57958-xxxH;
Terminal:57958-T

4,8

57957-xxxxx-xxx

57957-xxxxx-xxx

Header

3.0 (Micro Luck)

SMT

S/R R/A

5.57

20~30

7.00

Hosuing:57958-xxxH;
Terminal:57958-T

2,6,8,12

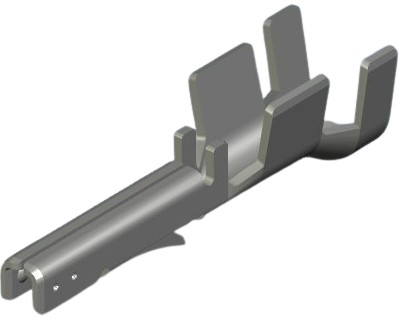

57958-Txxx-xxx

57958-Txxx-xxx

Terminal

3.0 (Micro Luck)

-

-

0.00

20~30

7.00

Header:56968/57957/57959/52995/57949/52996/57978/57922/57923;
Housing:57958-xxxH/57960-xxxH

-

57958-xxxHxxx-xxx

57958-xxxHxxx-xxx

Housing

3.0 (Micro Luck)

-

S/R

5.89

20~30

7.00

Header:57957/57923;
Terminal:57958-T

2,3,4,5,6,8,10,12

57959-xxxxx-xxx

57959-xxxxx-xxx

Header

3.0 (Micro Luck)

T/H

D/R S/T

9.91

16~30

9.00

Housing:57960-xxxH,
Terminal:57958-T01L

4,6,10,12,16,18,24

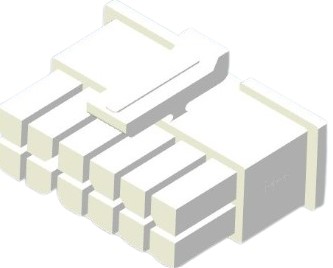

57960-xxxHxxx-001

57960-xxxHxxx-001

Housing

3.0 (Micro Luck)

-

D/R

10.85

20~30

7.00

Header:57959/52995/57978/57922;
Terminal:57958-T

2,4,6,8,10,12,16,18,24

57960-xxxHxxx-002

57960-xxxHxxx-002

Housing

3.0 (Micro Luck)

-

D/R

10.85

16~20

12.50

Header:56965/57965/56966/56967;
Terminal:57980-T57L-001

2,4,6,8,10,12,16,18,24

57960-xxxHxxx-003

57960-xxxHxxx-003

Housing

3.0 (Micro Luck)

-

D/R

10.85

16~20

9.00

Header:57959/52995/57978/57922;
Terminal:57980-T51L-002

24

57965-xxxxx-xxx

57965-xxxxx-xxx

Header

3.0 (Micro Luck)

T/H

D/R R/A

8.80

16~20

12.50

Housing:57960-xxxHxxx-002;
Terminal:57980-T57L-001

4,10,12

57978-xxxxx-xxx

57978-xxxxx-xxx

Header

3.0 (Micro Luck)

SMT

D/R S/T

9.96

16~30

9.00

Housing:57960-xxxH;
Terminal:57958-T01L

10

57979-xxxxx-xxx

57979-xxxxx-xxx

Header

3.0 (Micro Luck)

T/H

S/R S/T

9.90

20~30

7.00

Housing:57958-xxxH;
Terminal:57958-T

3

57980-Txxx-001

57980-Txxx-001

Terminal

3.0 (Micro Luck)

-

-

0.00

16~20

12.50

Header:56965/57965/56966/56967;
Hosuing:57960-xxxHxxx-002

-

57980-Txxx-002

57980-Txxx-002

Terminal

3.0 (Micro Luck)

-

-

0.00

16~20

9.00

Header:56968/57957/57959/52995/57949/52996/57978/57922/57923;
Housing:57960-xxxHxxx-003

-

59193-xxxxx-xxx

59193-xxxxx-xxx

Header

3.0 (Micro Luck)

T/H

D/R R/A

9.91

16~30

9.00

Housing:57960-xxxH,
Terminal:57958-T01L

4,6,8,12

59242-xxxxx-xxx

59242-xxxxx-xxx

header

3.0 (Micro Luck)

-

-

0.00

16~20

12.50

Header:56965/57965/56966/56967;
Hosuing:57960-xxxHxxx-002

-
