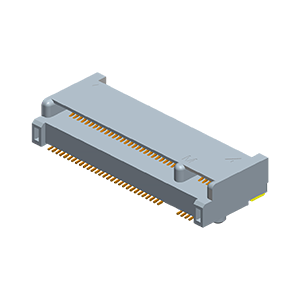

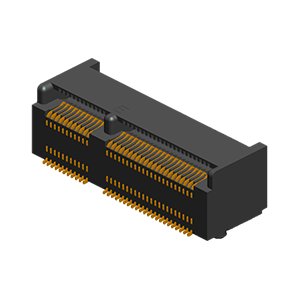

M.2

Features
Circuits: 67 pins
Mounting Type: SMT
Operation Direction: R/A
Standard type, Key A/B/E/M,
Product Height: 2.2/3.2/4.2/5.5/5.8/6.7/8.5mm

Advance Search

Series


Family

Type

Pitch(mm)

PCB Mounting

Operation Direction

Product Height (mm)

Center Height (mm)

PCB To Top Height (mm)

Contact Position

Key Option

Circuits

HighSpeed Support

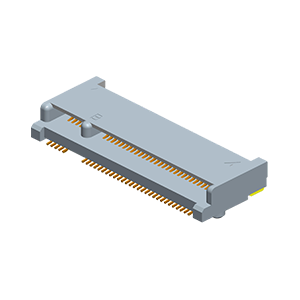

51733-xxxxx-xxx

51733-xxxxx-xxx

M.2

Standard

0.50

SMT

R/A

3.20

1.85

3.20

D/C

001(Key A) 002(Key B) 005(Key E) 012(Key M)

67

-

51736-xxxxx-xxx

51736-xxxxx-xxx

M.2

Standard

0.50

SMT

R/A

4.20

2.85

4.20

D/C

001(Key A) 002(Key B) 005(Key E) 012(Key M)

67

-

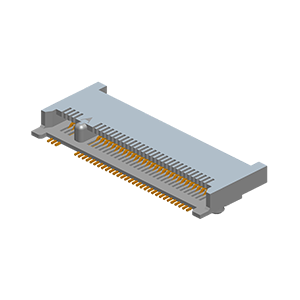

51746-067xx-xxx

51746-067xx-xxx

M.2

Standard

0.50

SMT

R/A

2.25

0.90

2.25

D/C

001(Key A) 002(Key B) 005(Key E) 012(Key M)

67

-

51748-075xx-xxx

51748-075xx-xxx

M.2

Standard

0.50

SMT

R/A

8.50

7.05

8.50

D/C

Key M

67

PCIe Gen 4(16GT/s)

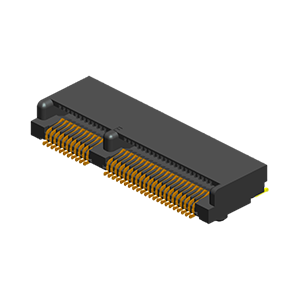

51750-0750x-xxx

51750-0750x-xxx

M.2

Standard

0.50

SMT

R/A

3.05

1.90

3.05

D/C

002(Key B) 005(Key E) 012(Key M)

67

-

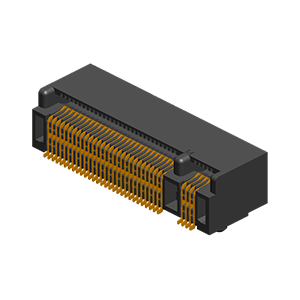

51757-0750x-xxx

51757-0750x-xxx

M.2

Standard

0.50

SMT

R/A

5.50

4.30

5.50

D/C

012(Key M)

67

-

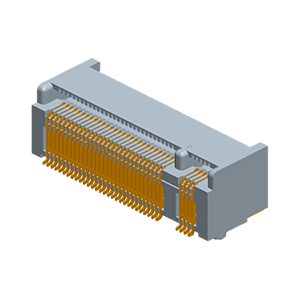

51763-0750x-xxx

51763-0750x-xxx

M.2

Standard

0.50

SMT

R/A

6.70

5.45

6.70

D/C

012(Key M)

67

-

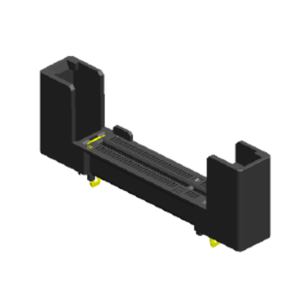

51765-xxxxx-xxx

51765-xxxxx-xxx

M.2

-

0.50

SMT

D/R S/T

12.50

-

-

-

012(Key M)

67

PCIe Gen 4(16GT/s)

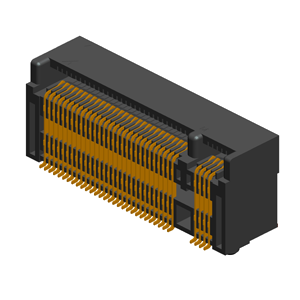

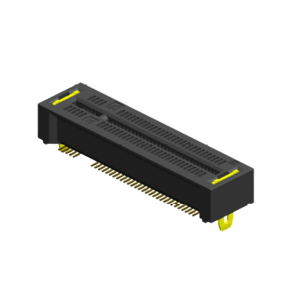

51771-xxxxx-xxx

51771-xxxxx-xxx

M.2

-

0.50

SMT

D/R S/T

4.20

-

-

-

012(Key M)

75

PCIe Gen 4(16GT/s)
