Receptacle

Features
Circuits: 14/24 pins
Type: Top-mount / Middle-mount / Vertical
Mounting: Single SMT / Dual SMT / Hybird Type
Current rating: 3A/5A

Advance Search

Series


Family

Interface

PCB Mounting

Circuits

High Speed Support

Center Height (mm)

Above PCB Height (mm)

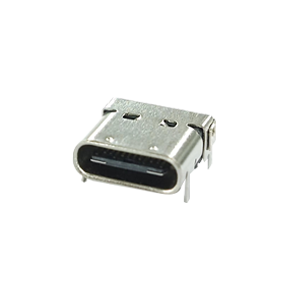

210-10017-02

210-10017-02 USB-C Conn

Receptacle

R/A

Dual SMT

24

PCIe Gen 2(5GT/s)

1.63

3.16

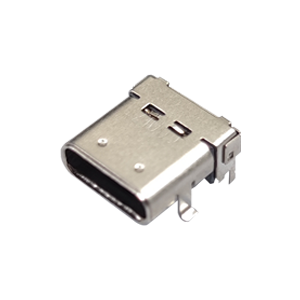

210-10127-01

210-10127-01 USB-C Conn.

Receptacle

Receptacle

SMT+DIP

24

USB 3.1 Gen 1

2.15

3.86

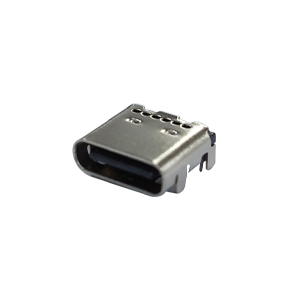

210-10134-01

210-10134-01 USB-C Conn

Receptacle

R/A

SMT+DIP

24

PCIe Gen 2(5GT/s)

2.15

3.42

31801-014xx-xxx

31801-014xx-xxx

Receptacle

Top-mount

Single SMT

14

USB 2.0 (480Mbps)

1.68

3.26

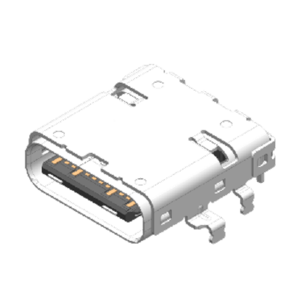

31831-024xx-V01

31831-024xx-V01

Receptacle

Mid-mount

SMT+DIP

24

USB 3.2 Gen 2 (10Gbps)

1.15

2.85

31832-014xx-xxx

31832-014xx-xxx

Receptacle

Mid-mount

Single SMT

14

USB 2.0 (480Mbps)

0.90

2.48

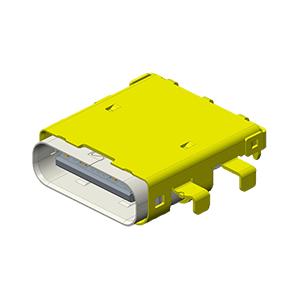

31861-024xx-xxx

31861-024xx-xxx

Receptacle

Mid-mount

Dual SMT

24

Thunderbolt 3(20Gbps)

0.00

1.70

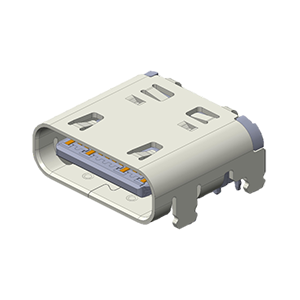

31862-024xx-xxx

31862-024xx-xxx

Receptacle

Top-mount

Dual SMT

24

Thunderbolt 3(20Gbps)

1.58

3.16

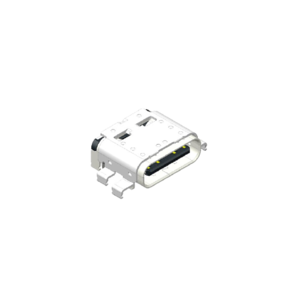

31863-xxxxx-xxx

31863-xxxxx-xxx

Receptacle

Top-mount

Dual SMT

24

-

1.58

3.41

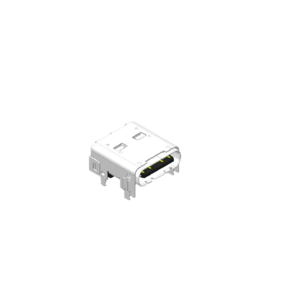

31865-024xx-xxx

31865-024xx-xxx

Receptacle

Top-mount

Dual SMT

24

USB4 Gen3

3.40

-

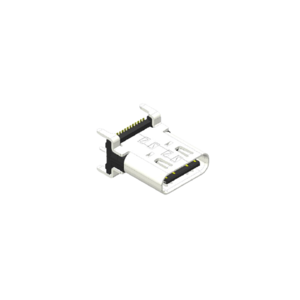

31890-xxxxx-xxx

31890-xxxxx-xxx

Receptacle

Vertical

Dual SMT

24

Gen2

0.00

10.85

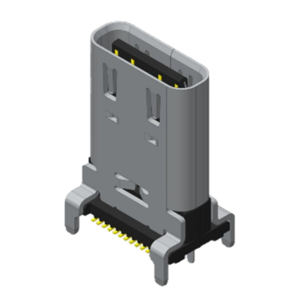

31893-024xx-001

31893-024xx-001

Receptacle

Vertical

Dual SMT

24

USB3.2 Gen 2 (10Gbps)

-

13.30

31893-024xx-002

31893-024xx-002

Receptacle

Vertical

Dual SMT

24

USB4 (40Gbps)

-

13.30

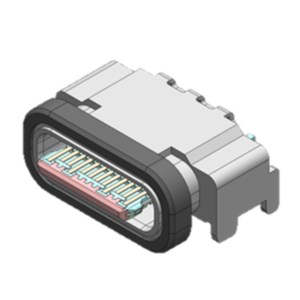

31895-024xx-xxx

31895-024xx-xxx

Receptacle

Top-Mount

Dual SMT

24

USB 3.2 Gen 1 (5Gbps)

1.58

3.76

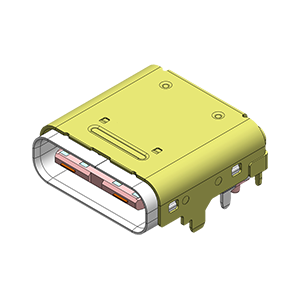

55910-024xx-xxx

55910-024xx-xxx

Receptacle

Top-mount

SMT+DIP

24

USB 3.2 Gen 2 (10Gbps)

1.60

3.35

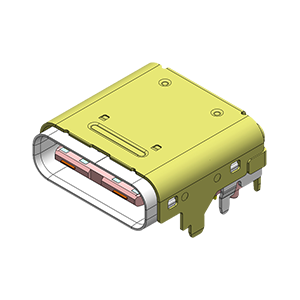

55912-024xx-xxx

55912-024xx-xxx

Receptacle

Top-mount

SMT+DIP

24

USB 3.2 Gen 2 (10Gbps)

2.20

3.95

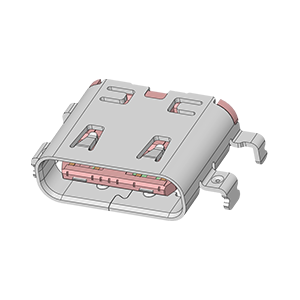

55919-014xx-xxx

55919-014xx-xxx

Receptacle

Mid-mount

Single SMT

14

USB 2.0 (480Mbps)

0.90

2.48

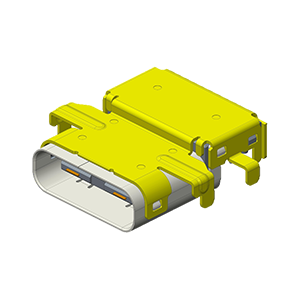

55933-024xx-xxx

55933-024xx-xxx

Receptacle

Mid-mount

SMT+DIP

24

USB 3.2 Gen 2 (10Gbps)

-0.60

1.93

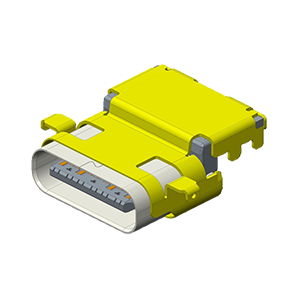

55939-024xx-xxx

55939-024xx-xxx

Receptacle

Mid-mount

SMT+DIP

24

USB 3.2 Gen 2 (10Gbps)

-1.22

1.47

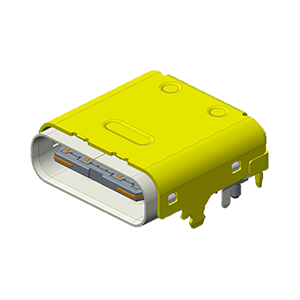

55940-024xx-002

55940-024xx-002

Receptacle

Top-mount

SMT+DIP

24

USB 3.2 Gen 2 (10Gbps)

1.60

3.35

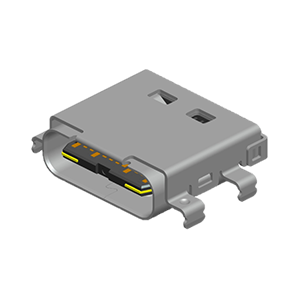

55960-024xx-001

55960-024xx-001

Receptacle

Mid-mount

Dual SMT

24

USB 3.2 Gen 2 (10Gbps)

0.50

2.20

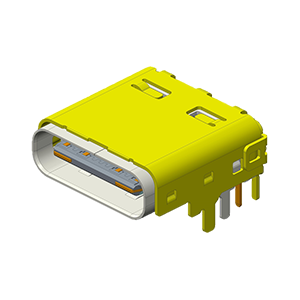

57988-024xx-xxx

57988-024xx-xxx

Receptacle

Top-mount

Dual SMT

24

Thunderbolt 3(20Gbps)

2.20

3.88

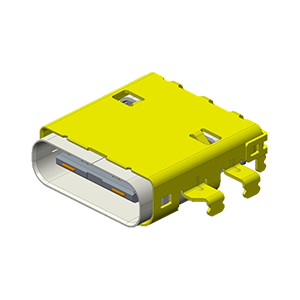

57991-024xx-xxx

57991-024xx-xxx

Receptacle

Mid-mount

SMT+DIP

24

USB 3.2 Gen 2 (10Gbps)

0.30

1.98

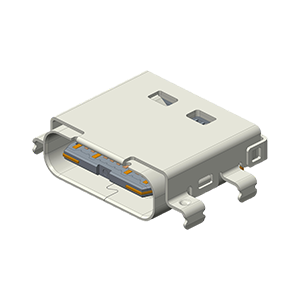

57996-024xx-xxx

57996-024xx-xxx

Receptacle

Mid-mount

Dual SMT

24

Thunderbolt 3(20Gbps)

0.50

2.20
